Turn style Door Full Height Revolving Turnstile ME406

Turn style Door Full Height Revolving Turnstile ME406

Technical info

  • Size:1520*1520*2300 mm (can be customized)
  • Lane Width: About 650mm (can be customized)
  • Passing speed: 30 person/min
  • Power supply: 110V/220V 50/60Hz
  • Solenoid: DC24V
  • Gate Open Signal: Dry Contact/ Relay
  • Logic Voltage: DC24V
  • Casing Material: 304 stainless steel or 316 stainless steel and PC board
  • Mechanism with hydraulic damper for shock-absorbing

Turn style door full height revolving turnstile carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on the full-height turnstile gate or have any questions, please contact us

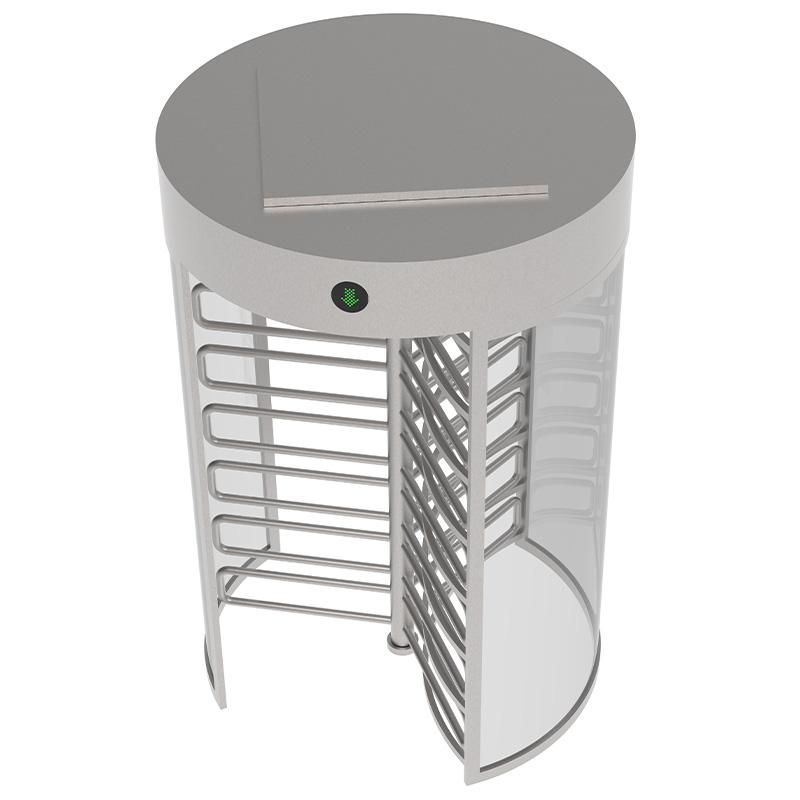

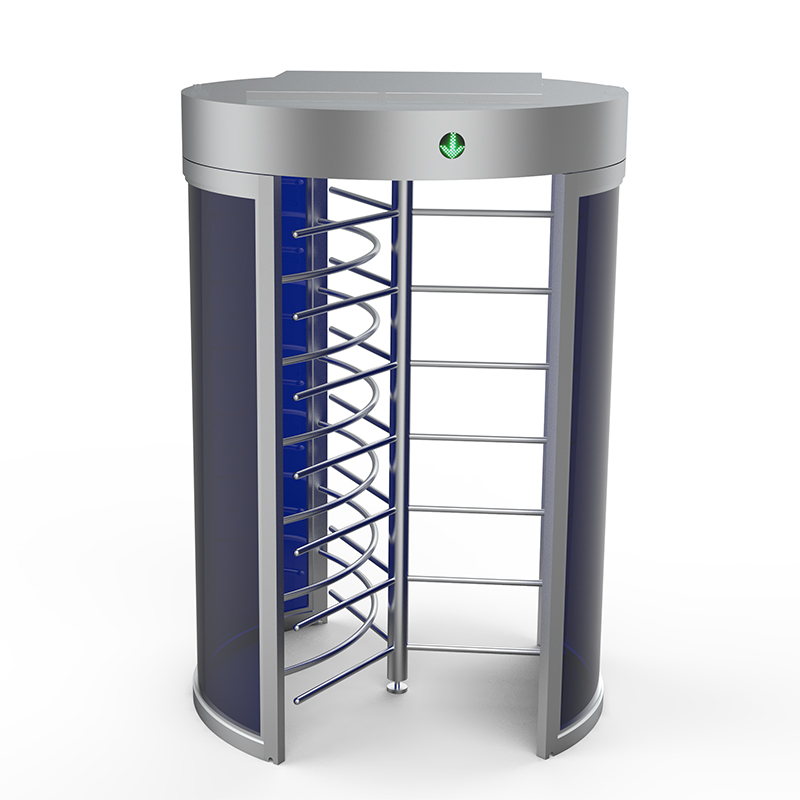

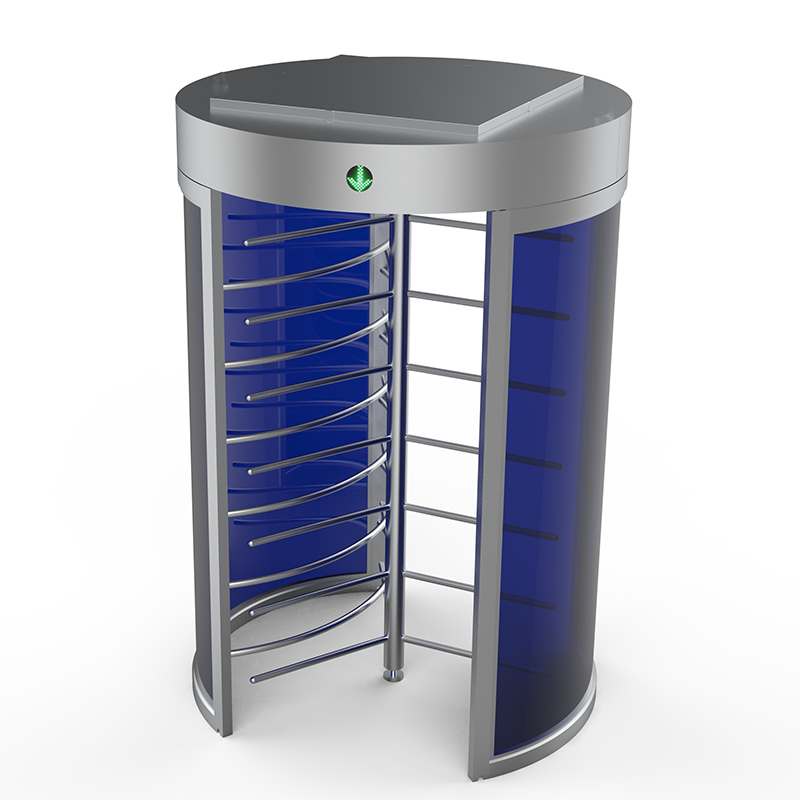

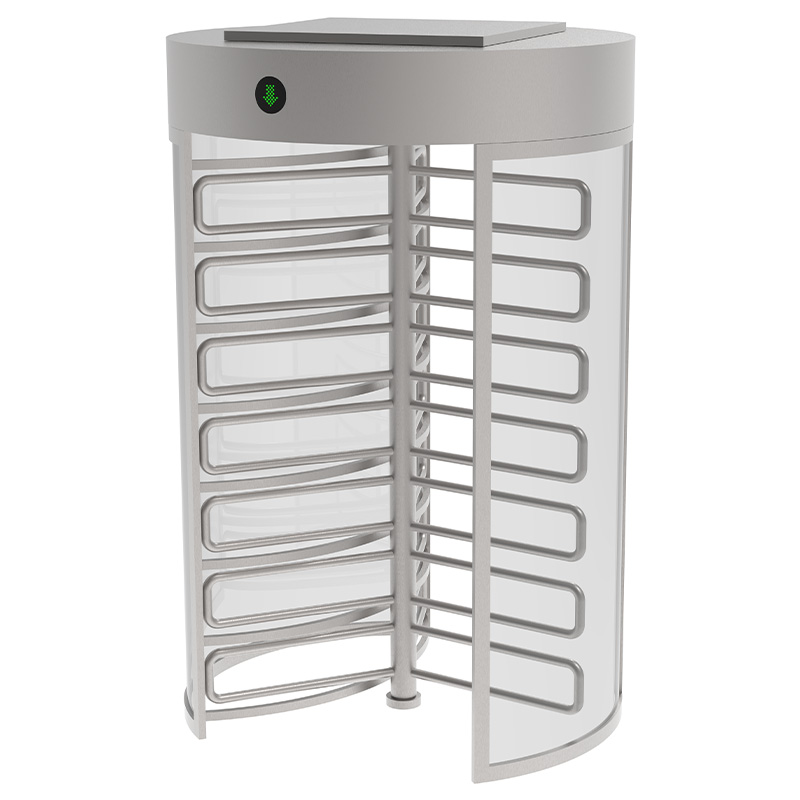

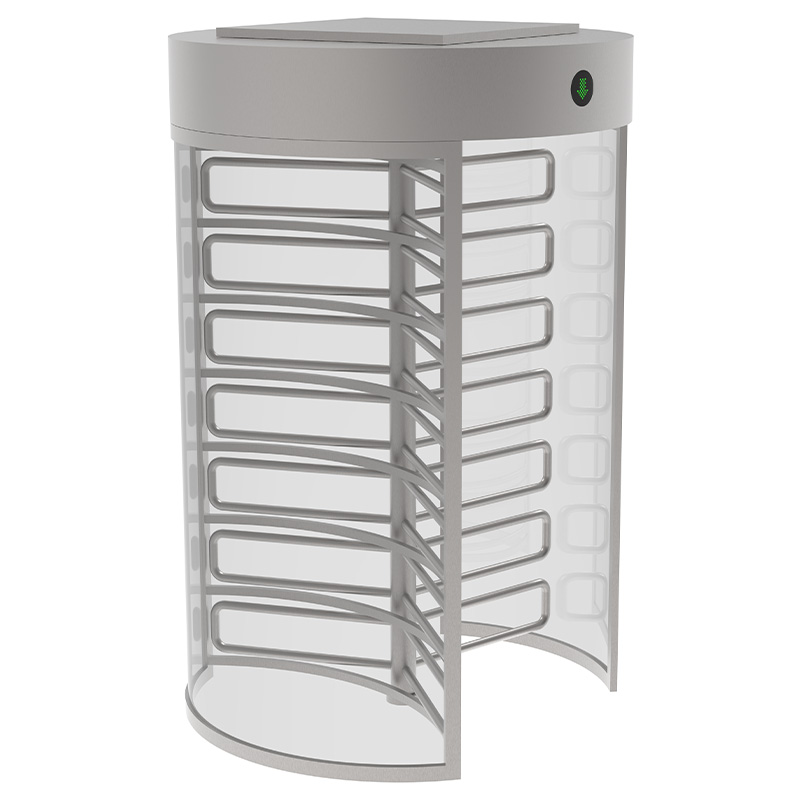

Turn style door is a kind of single full-height revolving turnstile with a large circular rotating/revolving door shape. Compared with ordinary full-height turnstiles, the biggest difference is the appearance.

Turn Style Door 5

Revolving turnstile is developed from the tripod turnstile gate and draws lessons from the characteristics of the rotary door. It can be divided into full height revolving turnstile and half height revolving turnstile according to height. This revolving turnstile belongs to the full height revolving turnstile. If you need a half-height revolving turnstile, please check our another product: half height turnstile

The large volume box is equipped with a flexible identification mode, which makes it not bulky to use, but it has the best security performance. Its two sides are no longer sidebars made of 304 stainless steel, but the special material PC board (polycarbonate sheet), which has the advantages of heat resistance, cold resistance, flame retardancy, fire resistance, impact resistance, very good light transmittance, and multiple colors. This composition makes the whole turn style door beautiful and durable, easy to disassemble, and convenient for transportation and installation.

Turn style door can be applied to all building environments and can solve all control problems of pedestrian entrance and exit passages. It can control whether the turn style door is open or closed at any time, the product also has multiple different kinds of signal interfaces. Customers can integrate with different third-party software or biometric equipment to expand the required special functions.

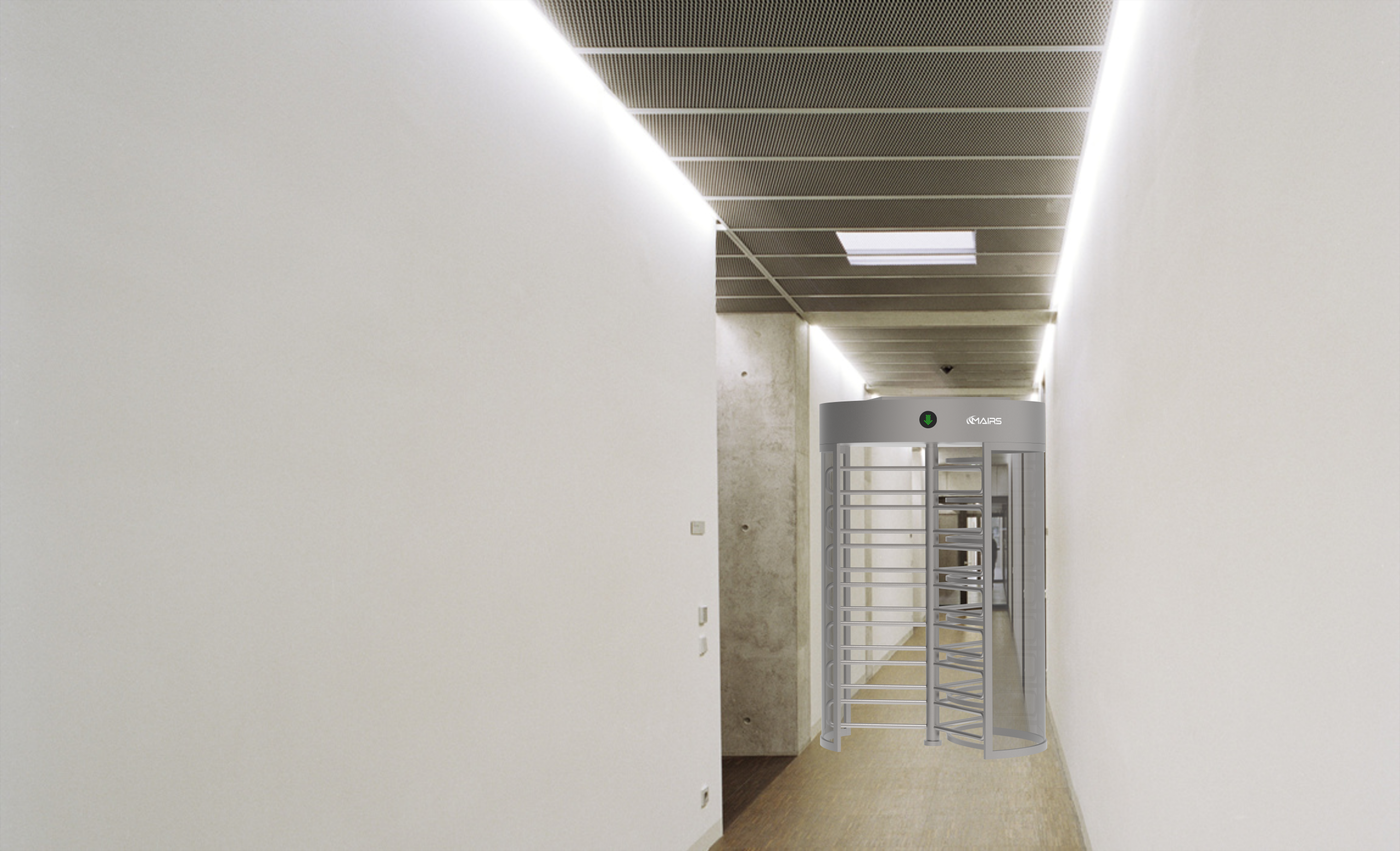

We can also create a rendering for you within a few minutes based on your actual scenario.

We also provide detailed layout and drawings, as well as installation drawings.

  •  Drive: Semi-automatic Operated
  • Arm length: 600 mm
  • The direction of rotation: Bidirectional
  • Reliability of the mechanism: 5 million, no-fault
  • Emergency situation: In the event of an emergency or isolation of the power supply the Rotating Door can be configured to Fail-Safe i.e. rotates freely or Fail-Lock
  • Humidity: ≤95%
  • Working temperature:-25℃~60℃
  • Optional Features: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
  • Communication distance: ≤1200 m
  • Communication interface: RS485
  • Size can be customized
  • The time needed for opening: 0.2 s
  • Working environment: Indoors or outdoors
  • Anti tailgating: the turnstile will stay in the lock when open around 60degree(3arms) or 45degree(4 arms) so the gate cannot run in the reverse direction to preventative-gating
  • Application range: Community, Factory, Construction site, School, Place of the resort, etc
  • We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
