Technical info
- Size:2200*200*1440 mm (can be customized)
- Lane Width: 600 mm (Standard)
- Arms material: Acrylic
- Passing speed: 40 person/min
- Power supply: 110V/220V 50/60hz
- Brushless motor
- Gate Open Signal: Dry Contact/ Relay
- Driving Motor: 24V
- Weight: 90 kg/pcs
This airport turnstile carries a 2 years warranty and durable maintenance and repair support.
We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

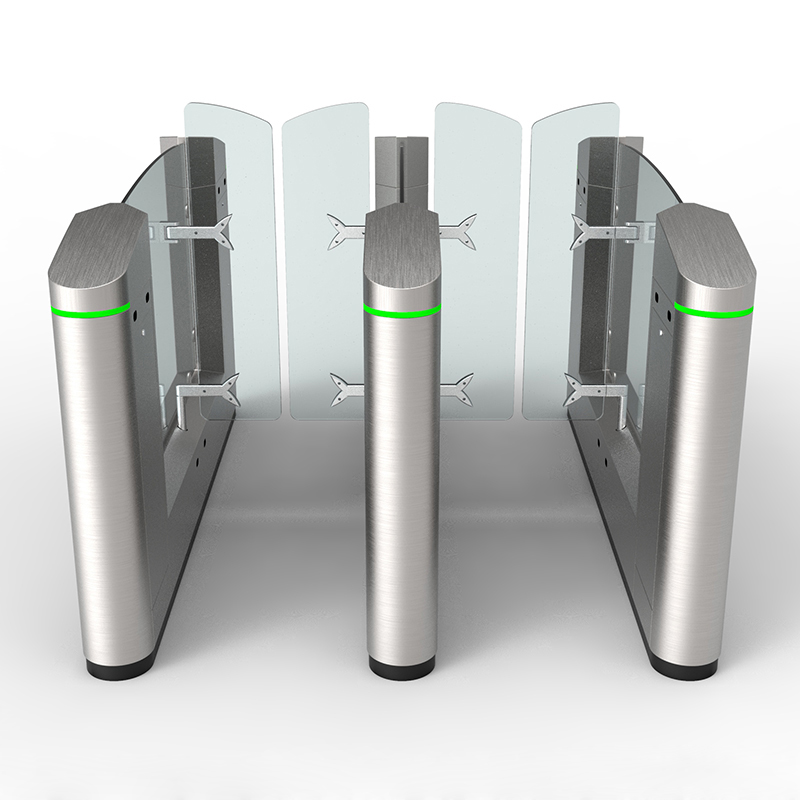

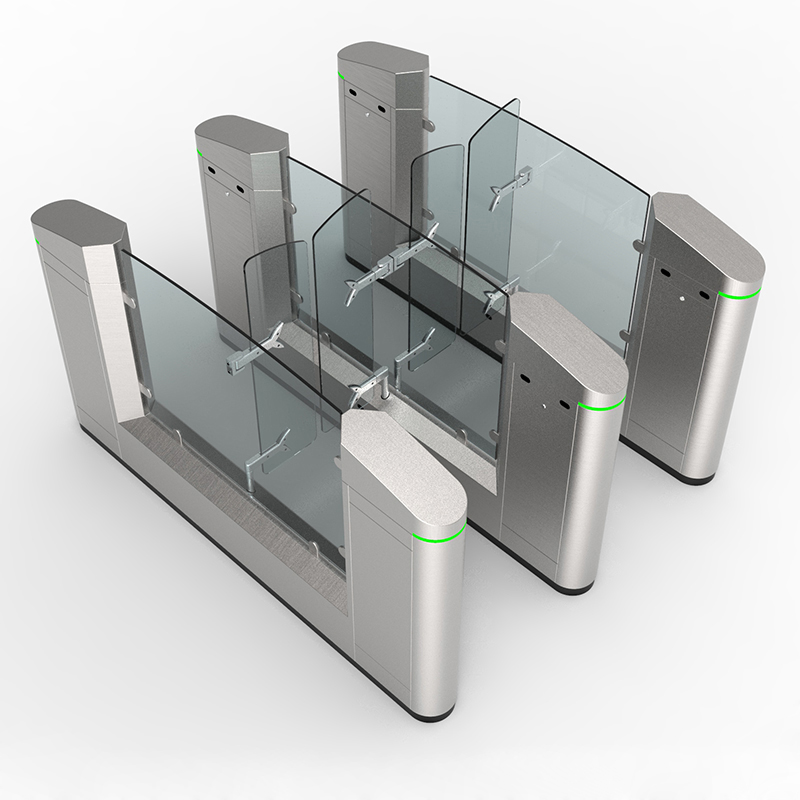

Airport turnstile is a kind of pedestrian access control management turnstile gate, which is used at the entrance and exit of the airport to control passengers in and out in combination with an airport ticket checking system.
Selection of airport turnstile gate: swing turnstile gate, flap barrier gate, speed gates, face recognition turnstile.
Why use the airport turnstile? Airport flow is very large, only relies on manual management, very difficult, especially the management of entrances and exits. If the intelligent QR code turnstile gate and face recognition turnstile gate is installed in the airport, it can not only make the entrance and exit management simple but also improve the management level.
Our SUS 304 stainless steel security swing barrier turnstile airport turnstile provides as wide as 1100 mm lane to accommodate bicycles, wheelchairs, motorbikes, trolleys, luggage, etc. SUS 304 stainless steel turnstile waterproof outdoor swing turnstile for apartment entrance.
It is mostly used at the gate of enterprise units, industrial plant areas, and high-end residential areas.
- Swing airport turnstile gate with a high traffic speed, which is usually applied in the location with high traffic flow in bi-direction running.
- The chassis is made from hairline texture 304 stainless steel, which creates a seamless and elegant access point to match most indoor environments.
- This swing turnstile comes with international standard RS485 and relays Which makes it widely compatible with all existing software in the industry and almost all of the access control like
- RFID system, Bar codes systems, Face recognition systems, fingerprint systems, etc.
- In case of emergency, cut off the power, the Slim swing turnstile gate will open automatically to allow free passage which is complying with fire safety requirements. But it has to come with a
- battery. As for export, the battery is sensitive, we can use the capacitor to replace
- Swing airport turnstile is suitable for luxury and high-end entrance solutions.
- The whole system runs smoothly, with low noise, and high speed.
- Alarm function, if their an illegal intrusion or reverse intrusion, the gate will alarm and the door will lock.
- There is a total of 5pairs of infrared sensors. The middle sensors are to prevent pinching pedestrians.
- Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
- LED indicator. Red cross and green arrow. There are also LED indicators on the front post. The LED light can be added to the arms.
- Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, and shopping stroller increasing the passing efficiency.
- Automatic reset function. If the people did pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically.
- Anti-bump, Anti clamp, the exterior turnstile gate comes with brushless during operation if someone hits the arm, the exterior turnstile gate will reset automatically. This function effectively
- prevents pedestrians especially children from bumping, clipping, striking, etc.
- Size and material thickness can be customized
- Casing Material: 304 stainless steel
- Reliability of the mechanism: 3 million-5 million, no-fault
- LED lights on arms are optional
- LED on the sideboard is optional
- Swingarm thickness: 10 mm
- Working Direction: Bidirectional/Single directional
- Emergency situation: open automatically when the electricity is cut off with a capacitor
- Humidity: ≤90%
- Working temperature: -20℃~60℃
- Communication distance: ≤1200 m
- Communication interface: RS485
- Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
- The time needed for opening: 0.2 s
- Working environment: Indoors
- Application range: Community, Factory, Construction site, School, Place of the resort, etc
