SWING GATE ME-314 bar + radar

SWING GATE ME-314 bar + radar

Technical info

  • Dimension: 250*190*1050mm(0.82*0.62*3.44ft)
  • Material: SUS 304
  • Swing arm Material: Stainless steel/ Acrylic
  • Passage Width (Singlepcs): 600mm (1.97ft) -1000mm(3.28ft)
  • Mechanism: DC Brushless Motor
  • Pass rate: 30-35 persons/minute
  • Power Supply: 100V-240V 50/60Hz

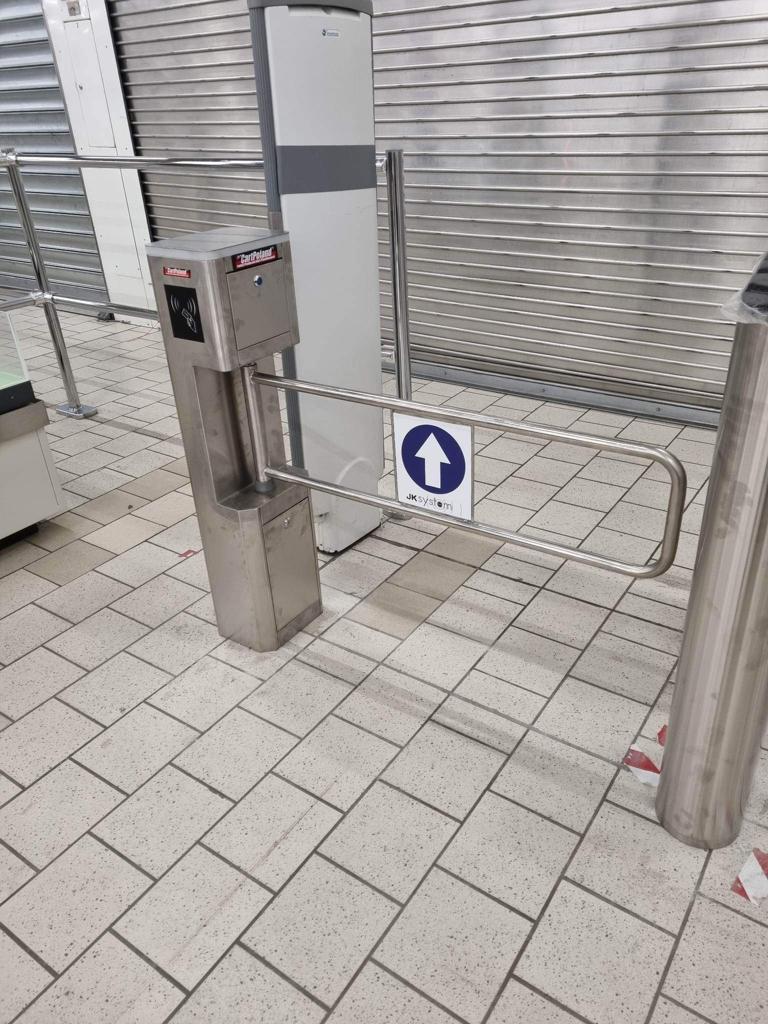

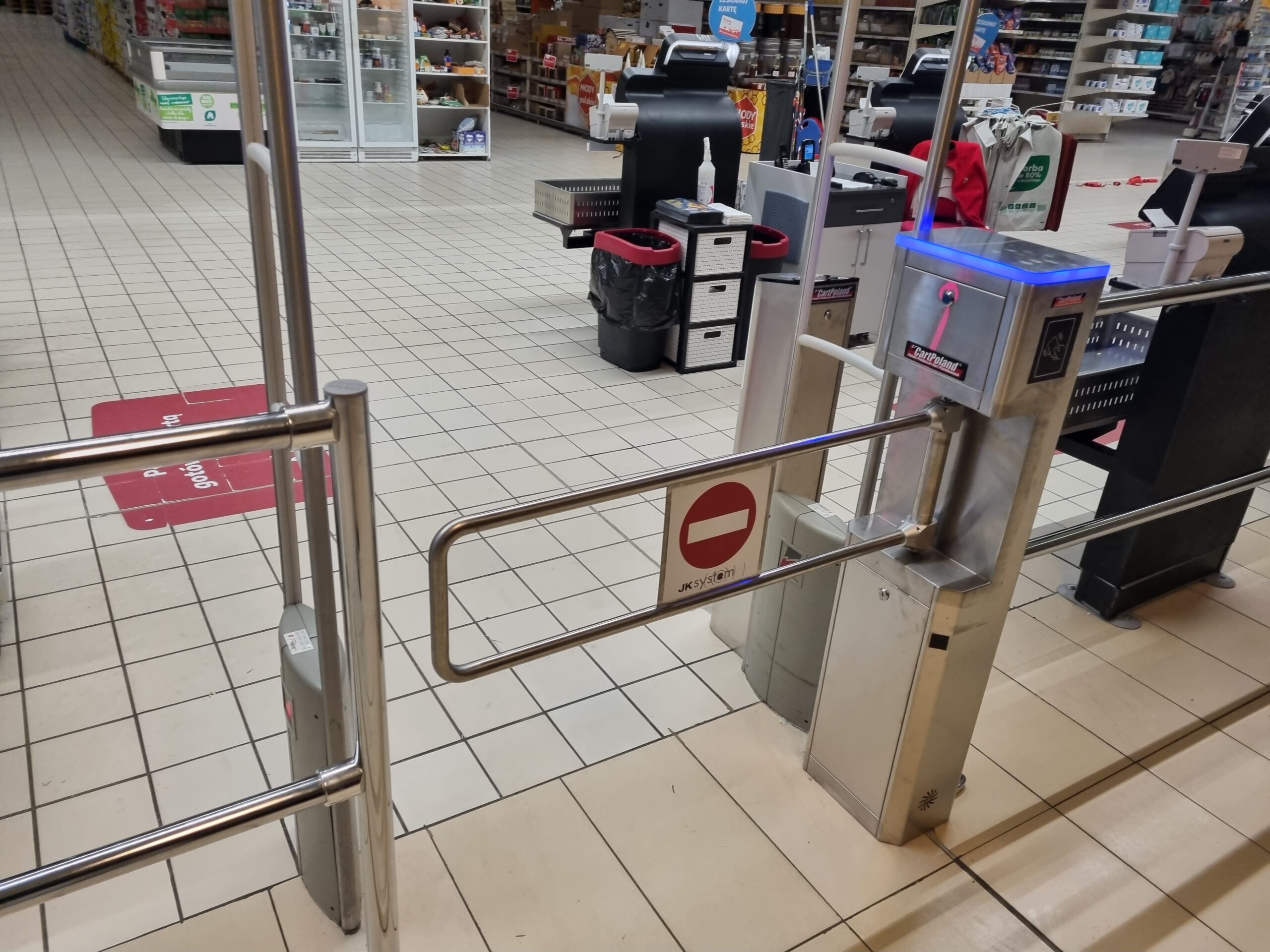

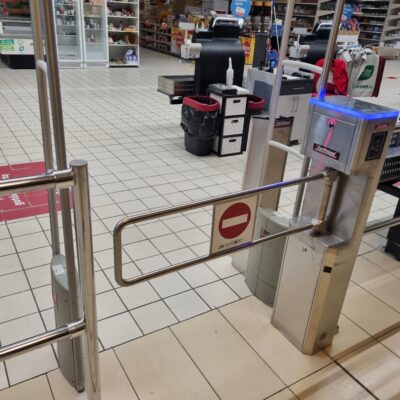

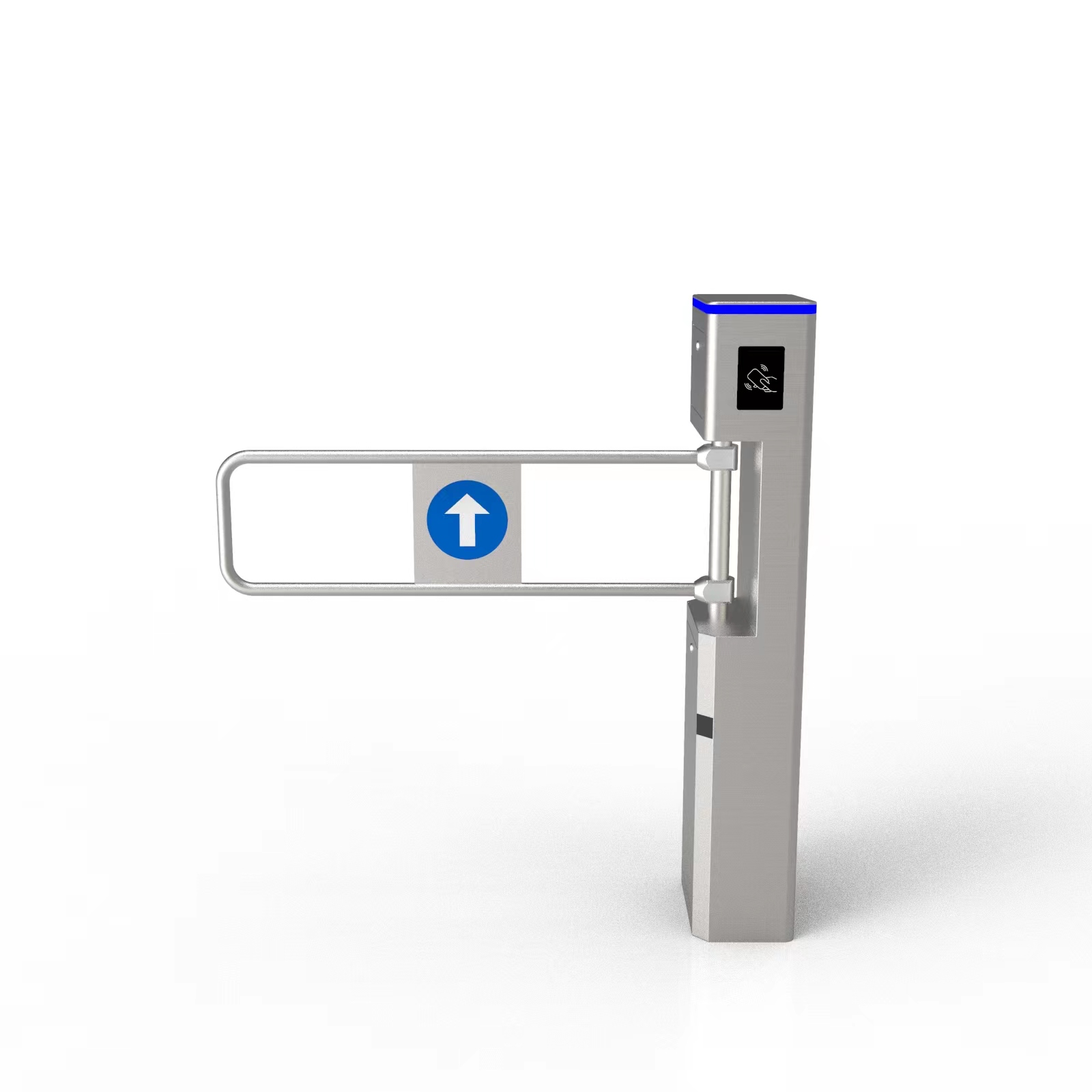

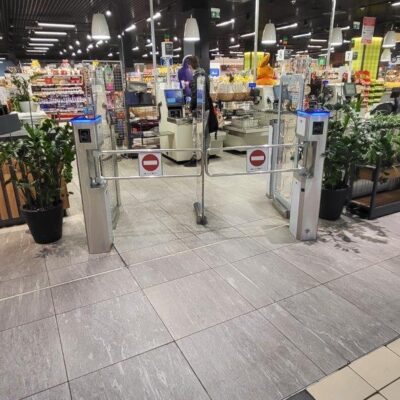

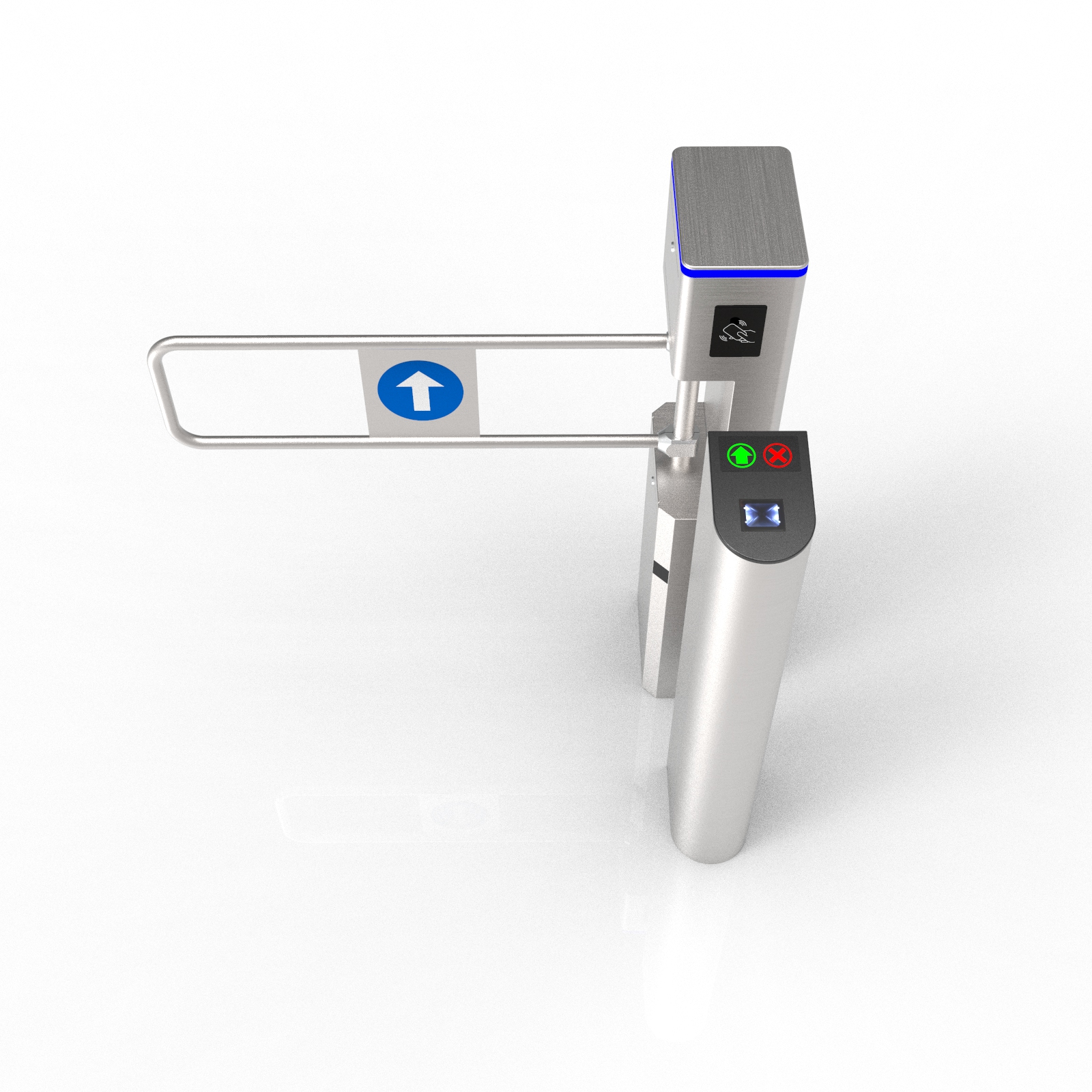

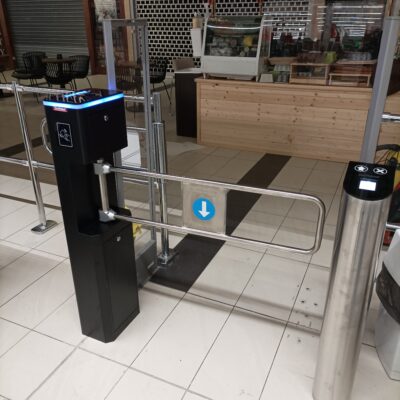

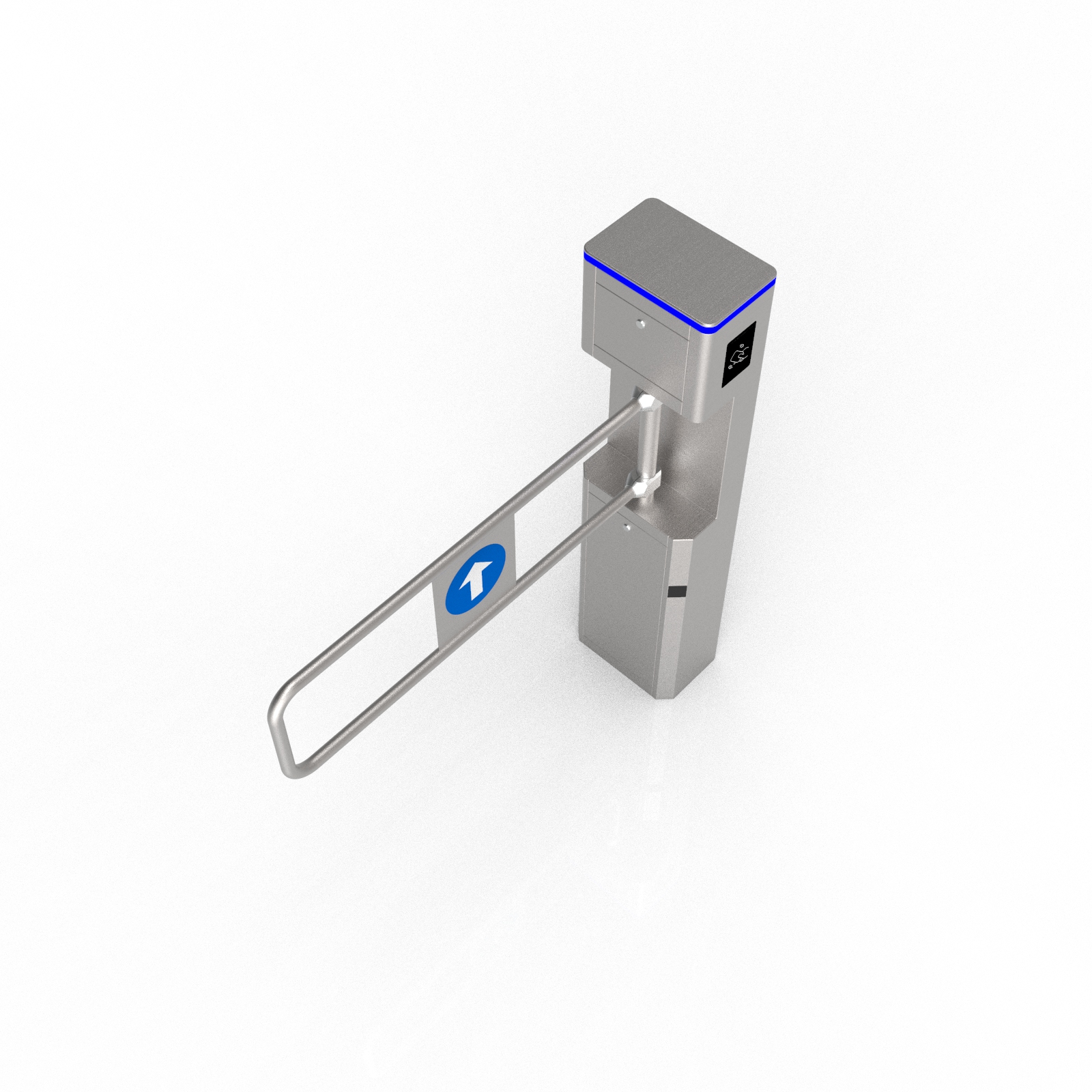

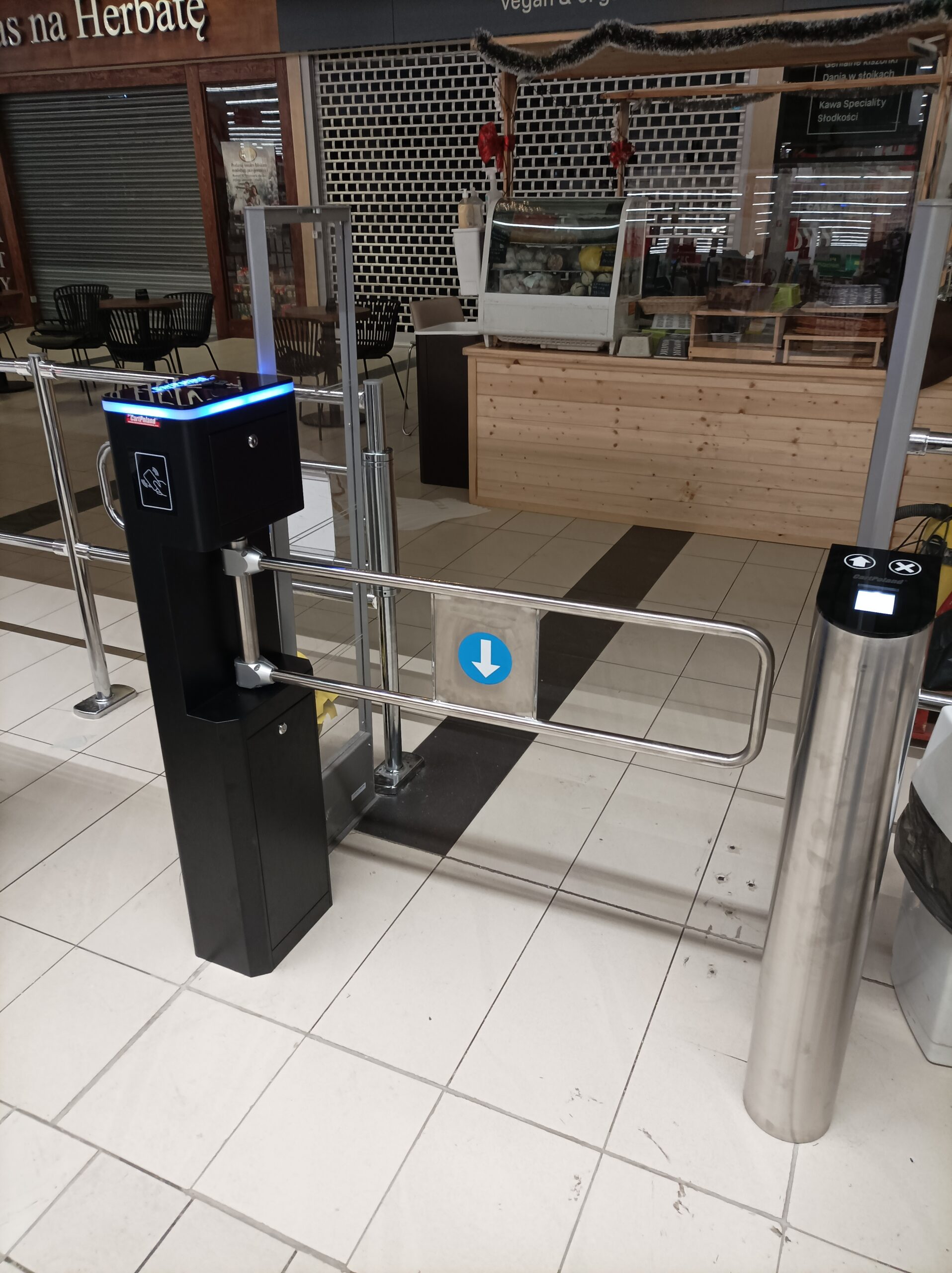

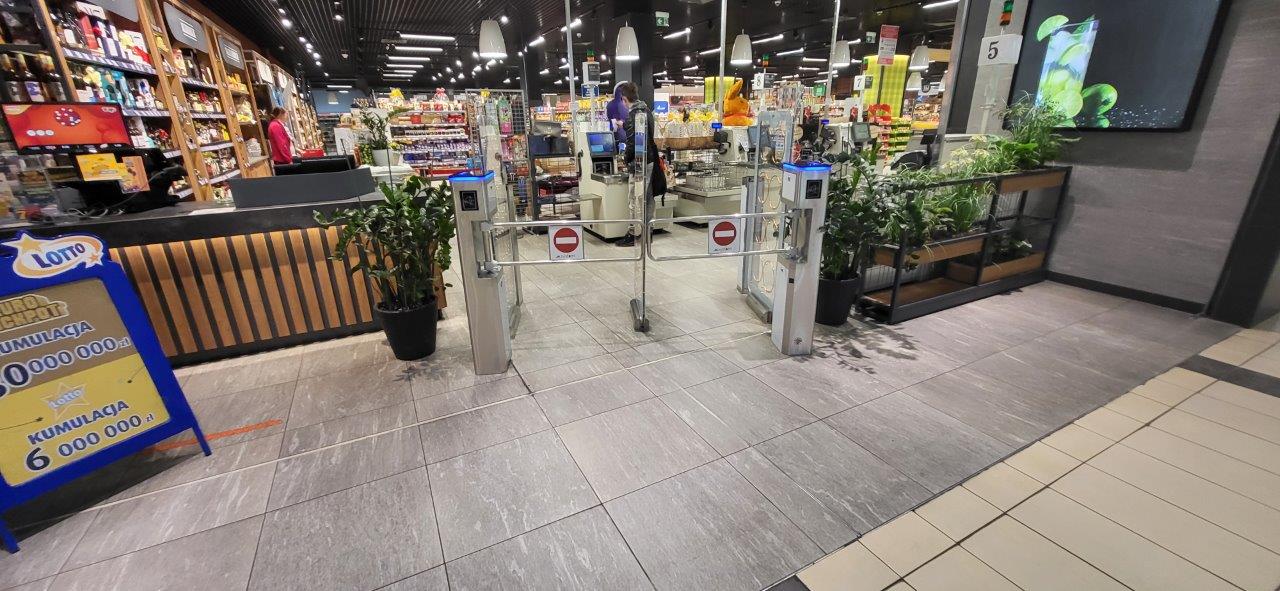

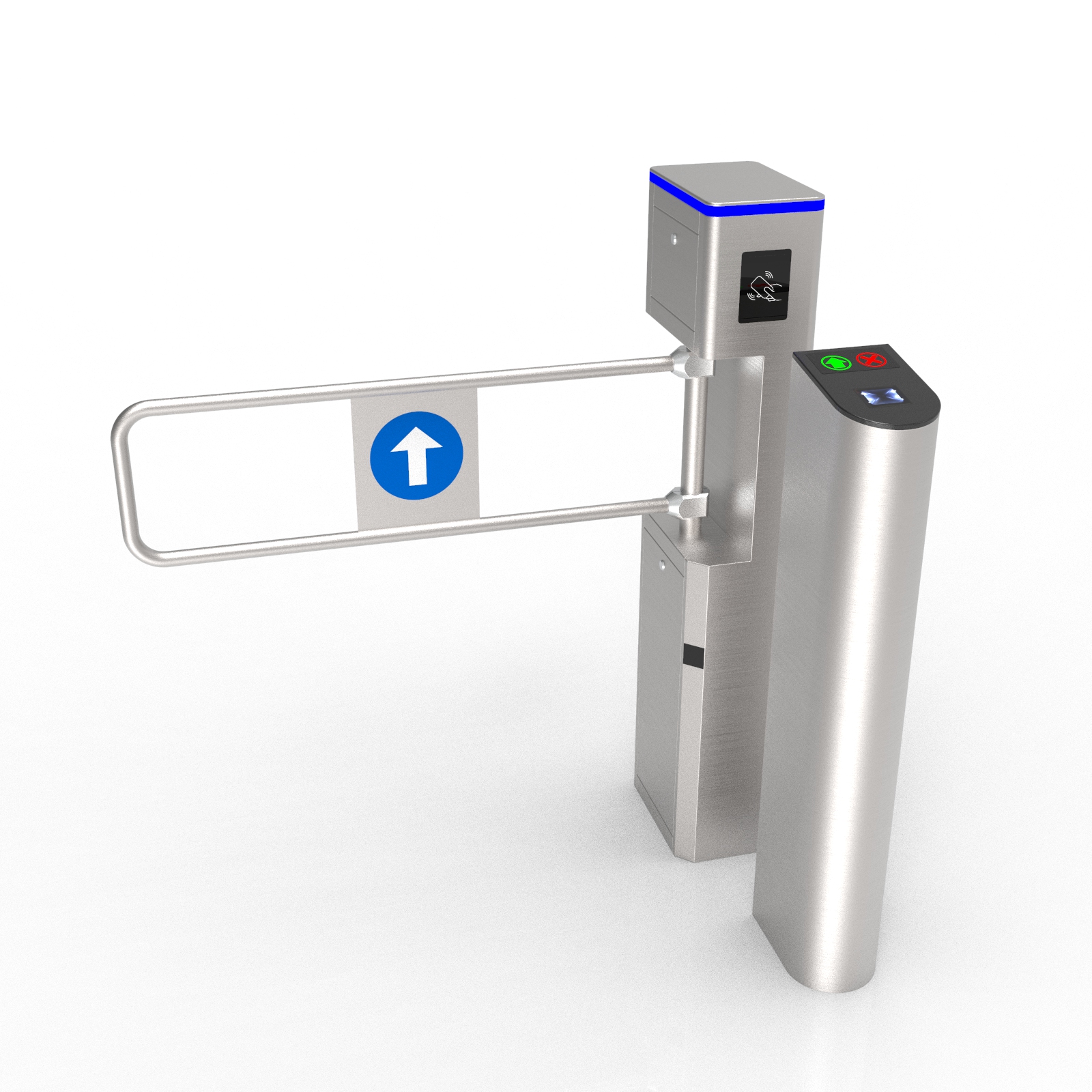

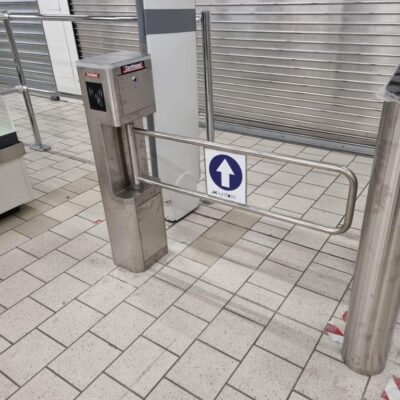

he ME-314 Supermarket Entrance Turnstile has a slender, upright post with a horizontal arm or barrier that rotates in a vertical plane

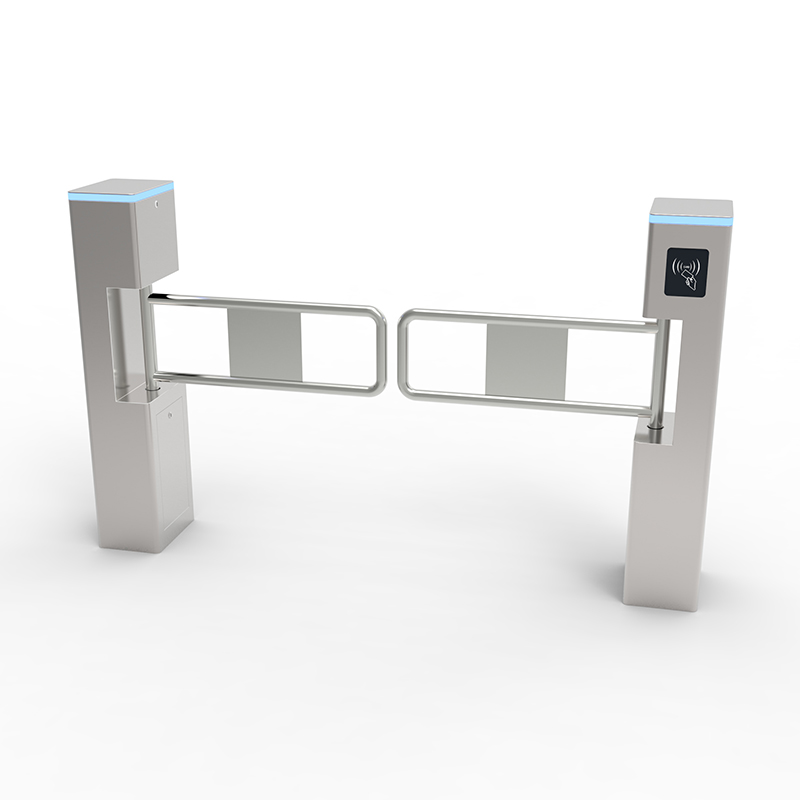

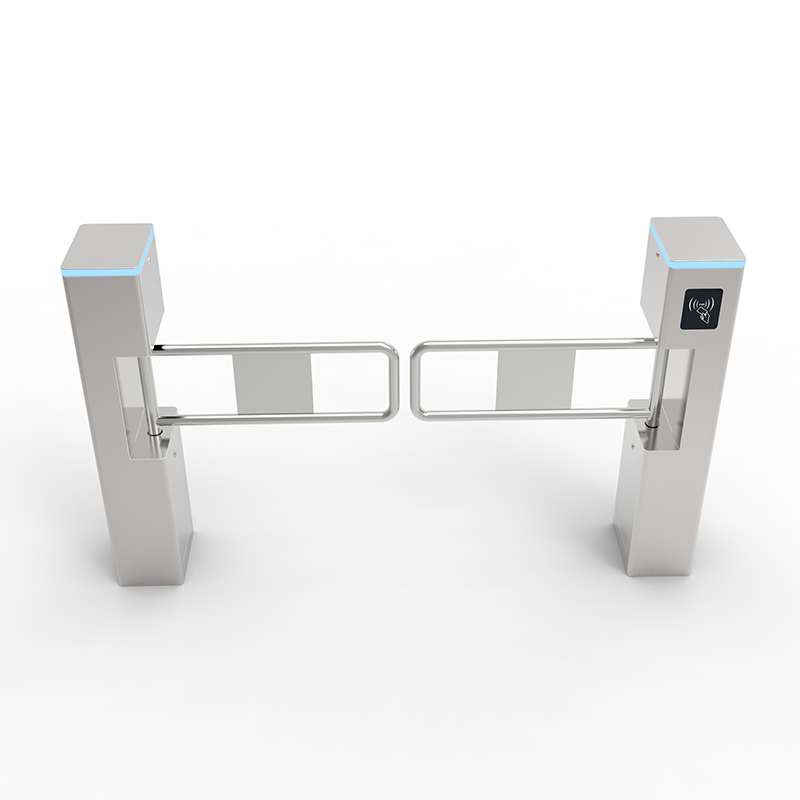

lt can work as a single(1pcs) or a pair(2pcs). The lane width of a single can be set to 600-1000mm. The lane width of a pair can be set to 600-2000mm, which can be used for wheelchair, luggage or bicycle access.

ME-314 can be set to allow access in a bidirection or single-directional based on client’s requirement. The exit direction is equipped with a radar sensor that automatically opens the gate when a person approaches. The radar sensing area is sector and the sensing range can be adjusted on the radar board.

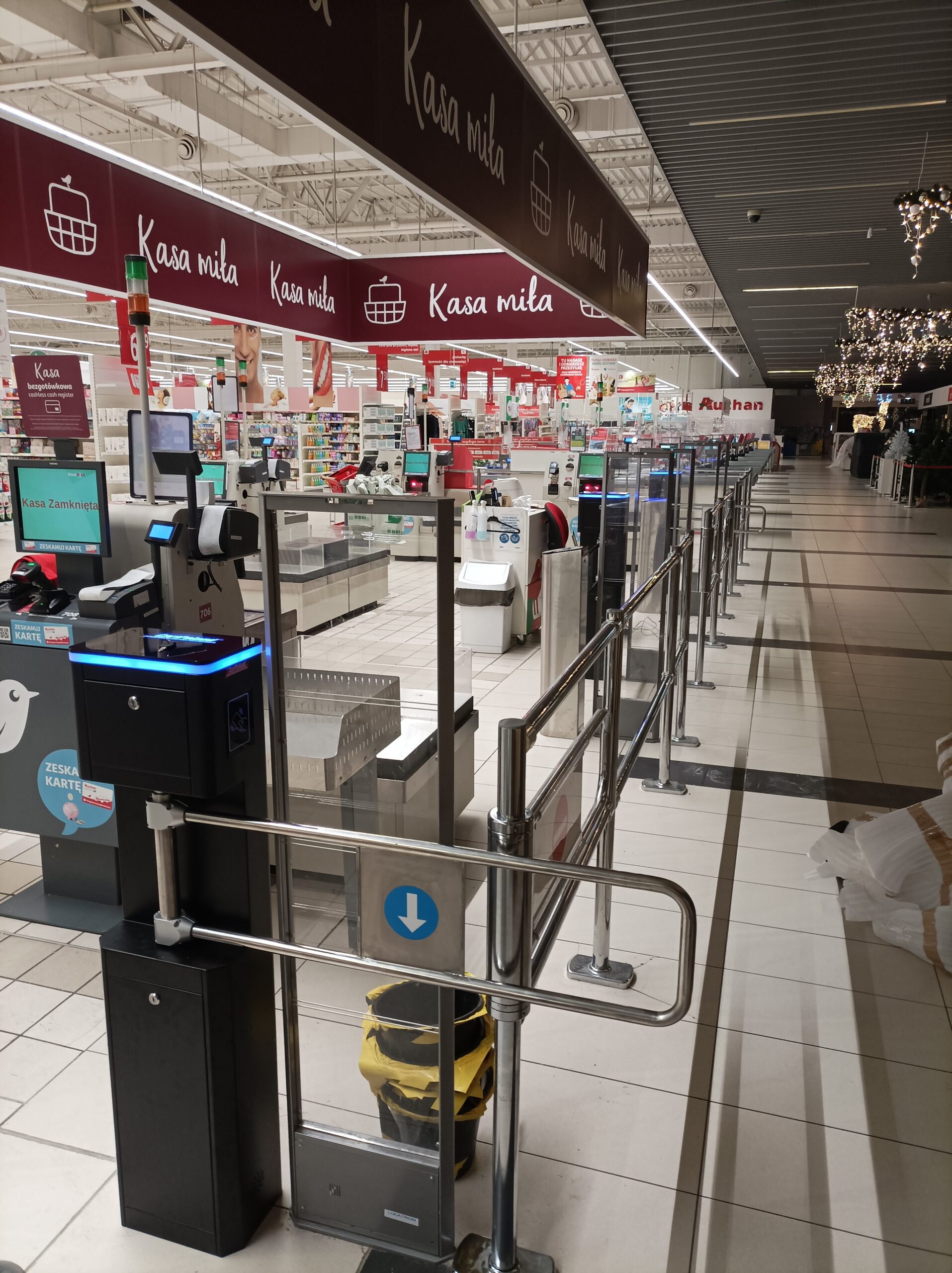

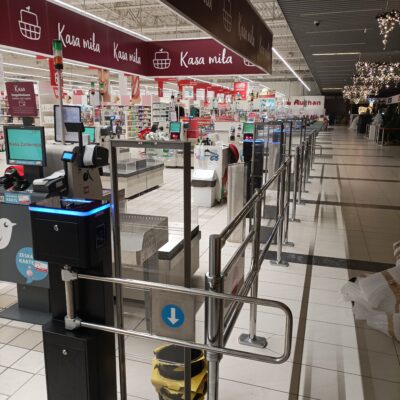

Vertical supermarket entrance turnstiles are space-efficient and suitable for locations with limited space as they don’t require much room for installation. These turnstiles are deployed in a wide range of environments, from public transit stations and airports to corporate offices, stadiums, and high-security facilities. They help regulate pedestrian flow and enhance security.
