Technical info
- Gate Dimension: 500*150*980mm (1.64*0.49*3.22ft) (standard)
- Gate Material: Iron with powder coated+SUS304 +acrylic
- Swing arm Material: Acrylic, Tube, Mesh

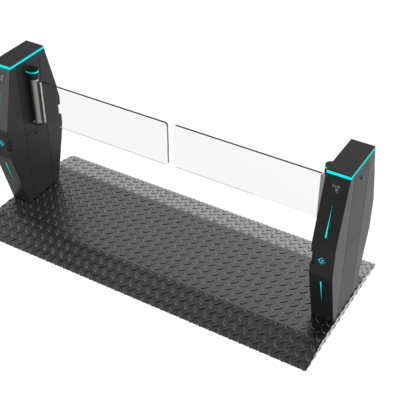

- Passage Width: 600mm (1.97ft) – 900mm (2.95ft)
- Top cover: Acrylic, Tempered glass options
- Power Supply: 100V-240V, 50/60Hz
- Mechanism: Brushless motor mechanism
- MCBF: 4,000,000 Cycles
- Radar: 1pcs
- Illegal intrusion: If illegally push the arm, the gate will alarm
- Open Signal: Passive Relay (Dry Contact)

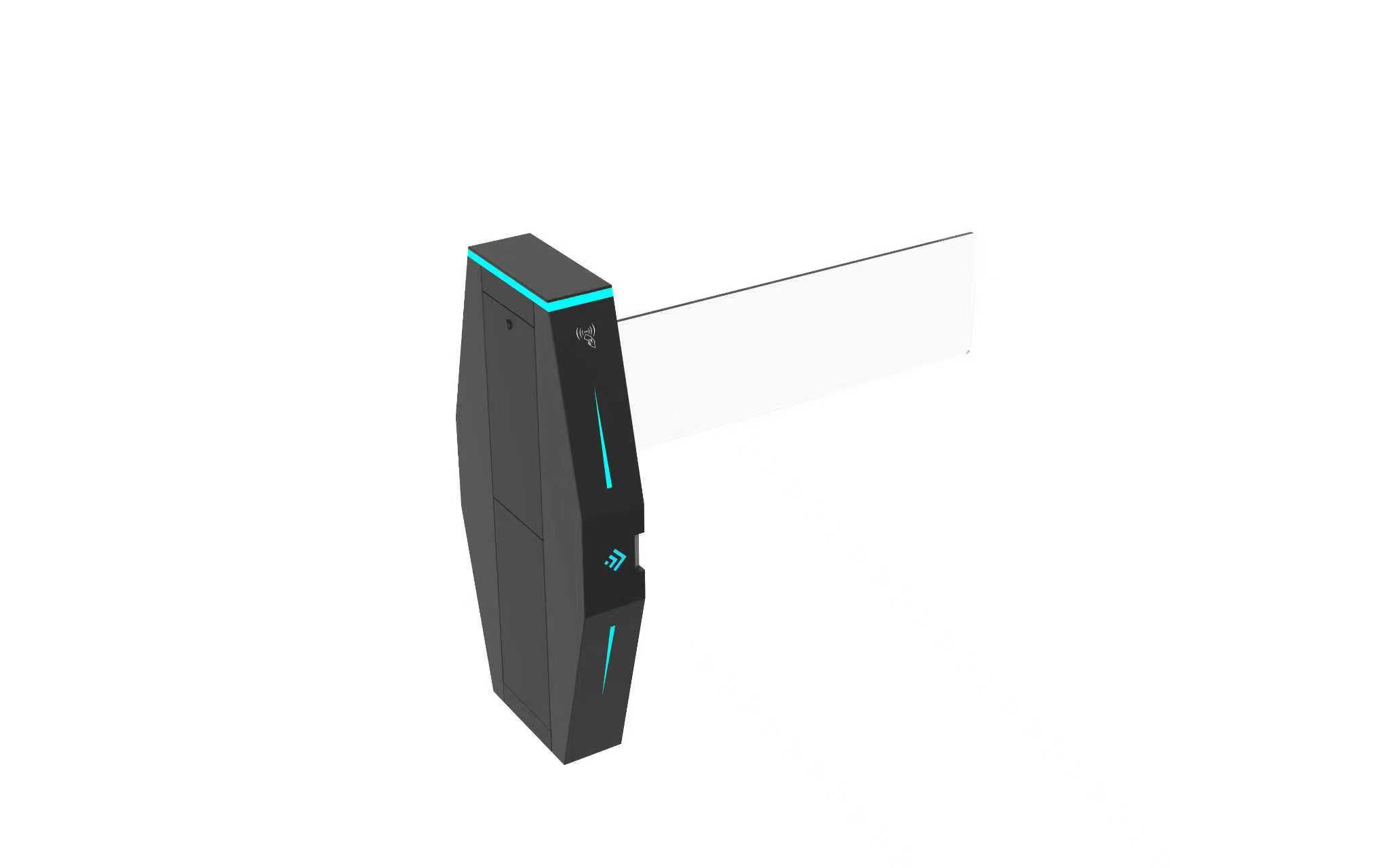

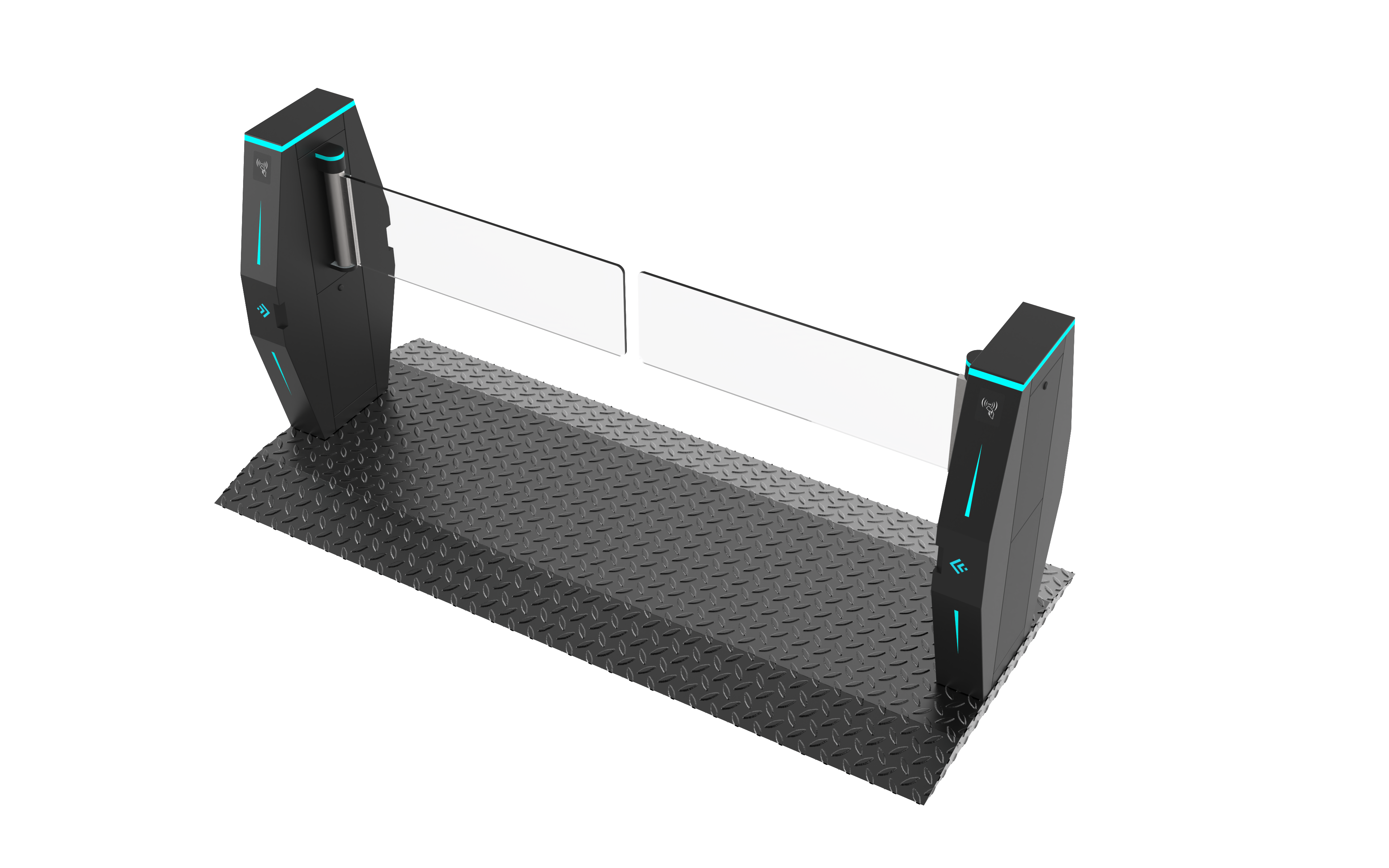

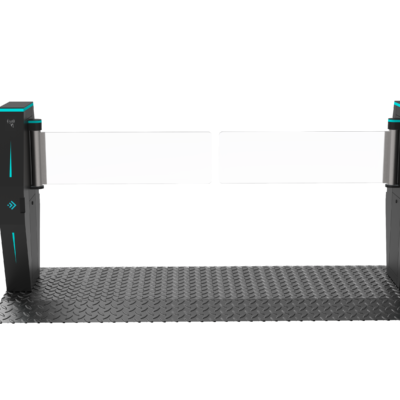

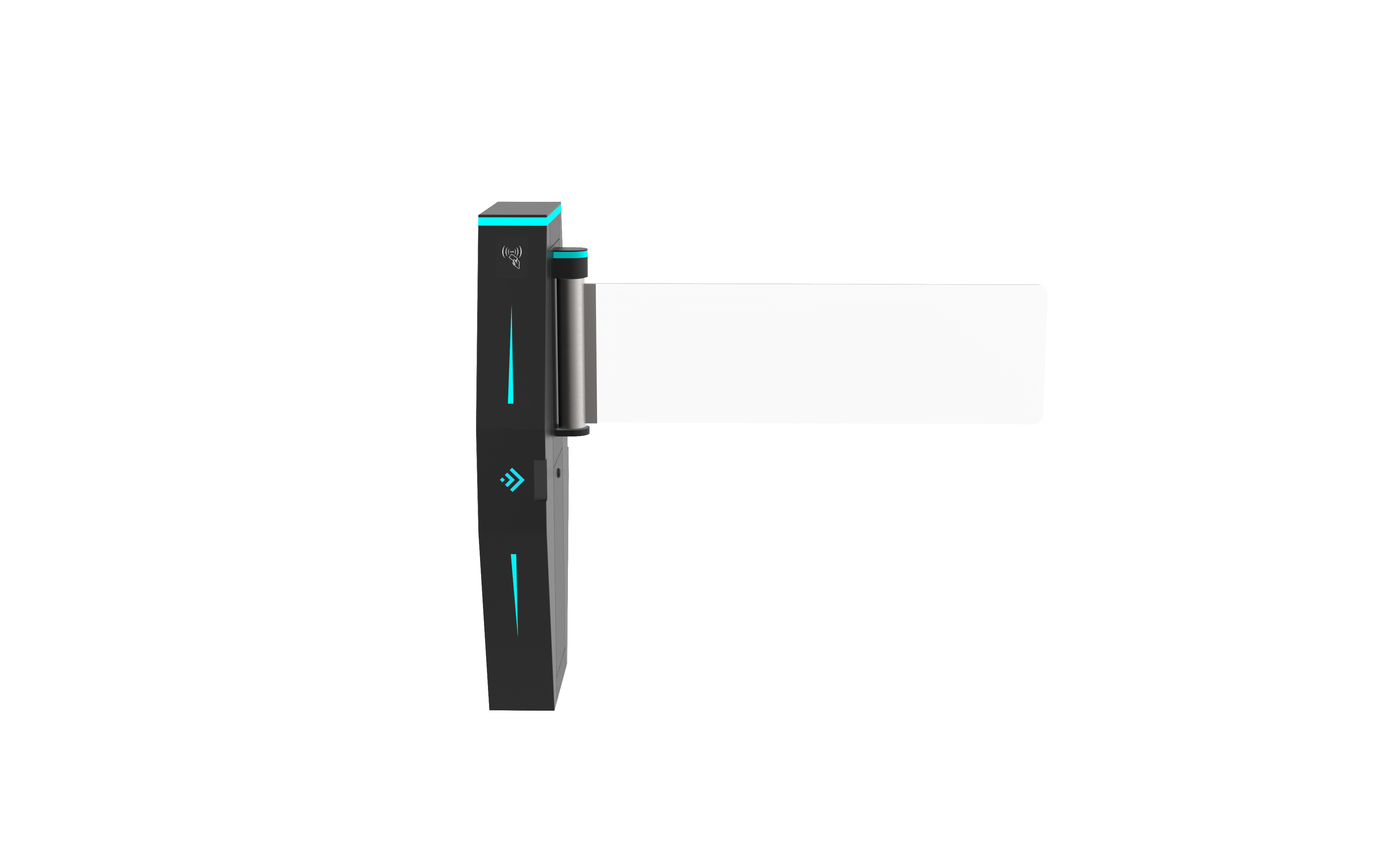

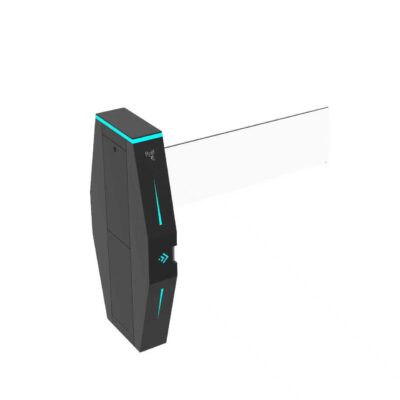

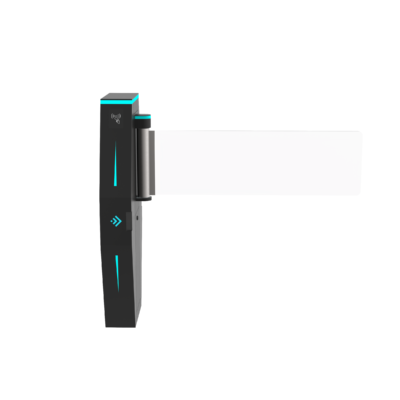

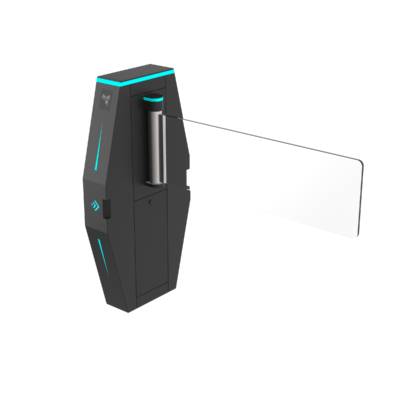

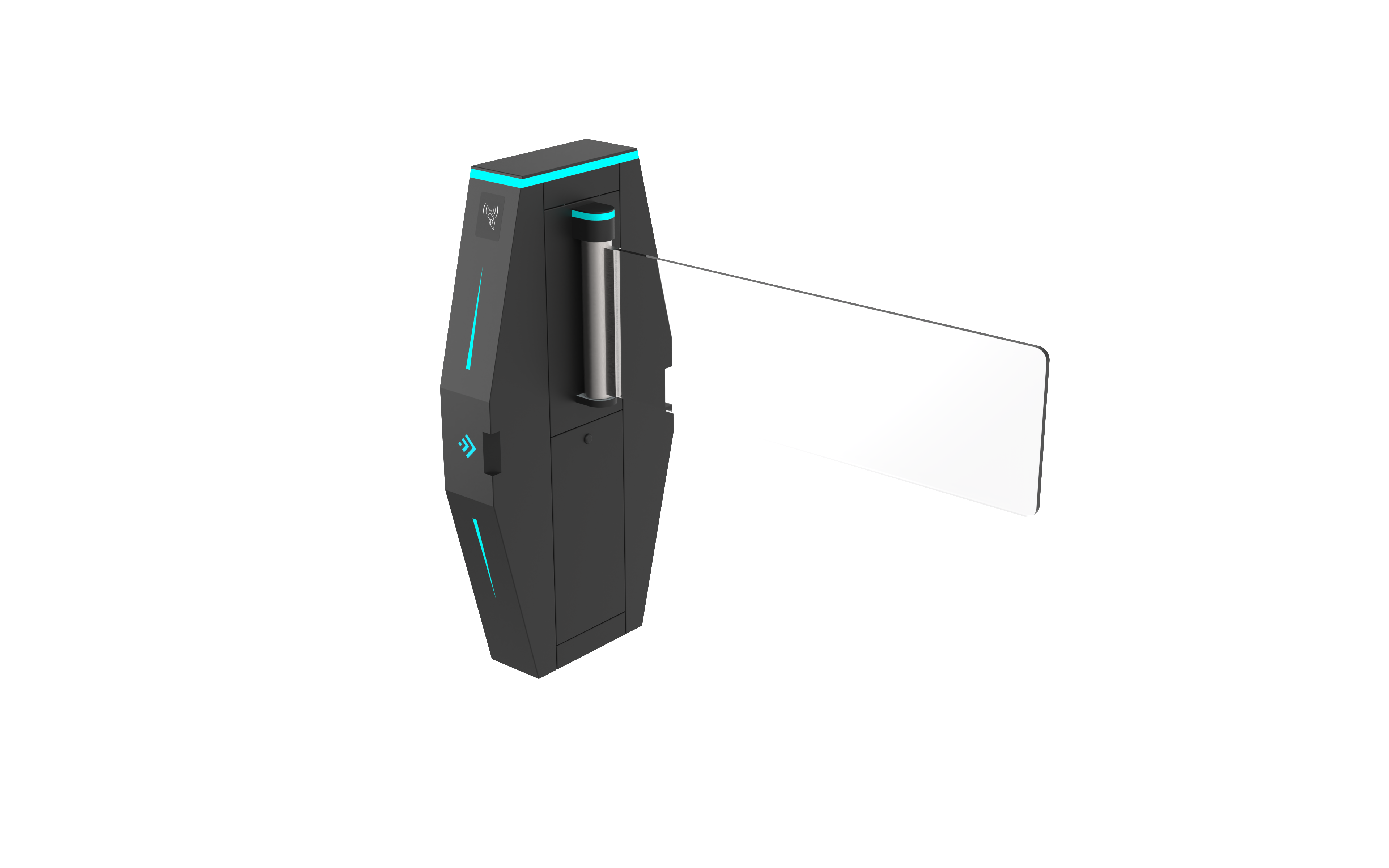

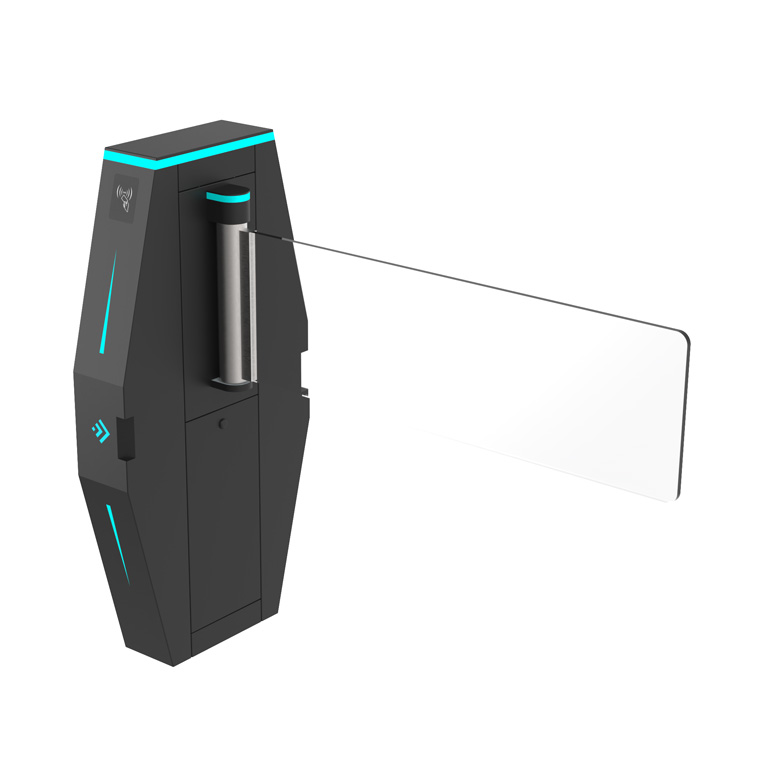

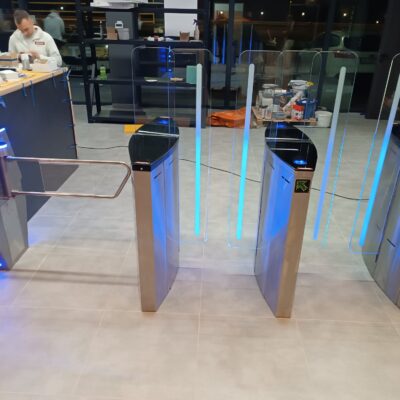

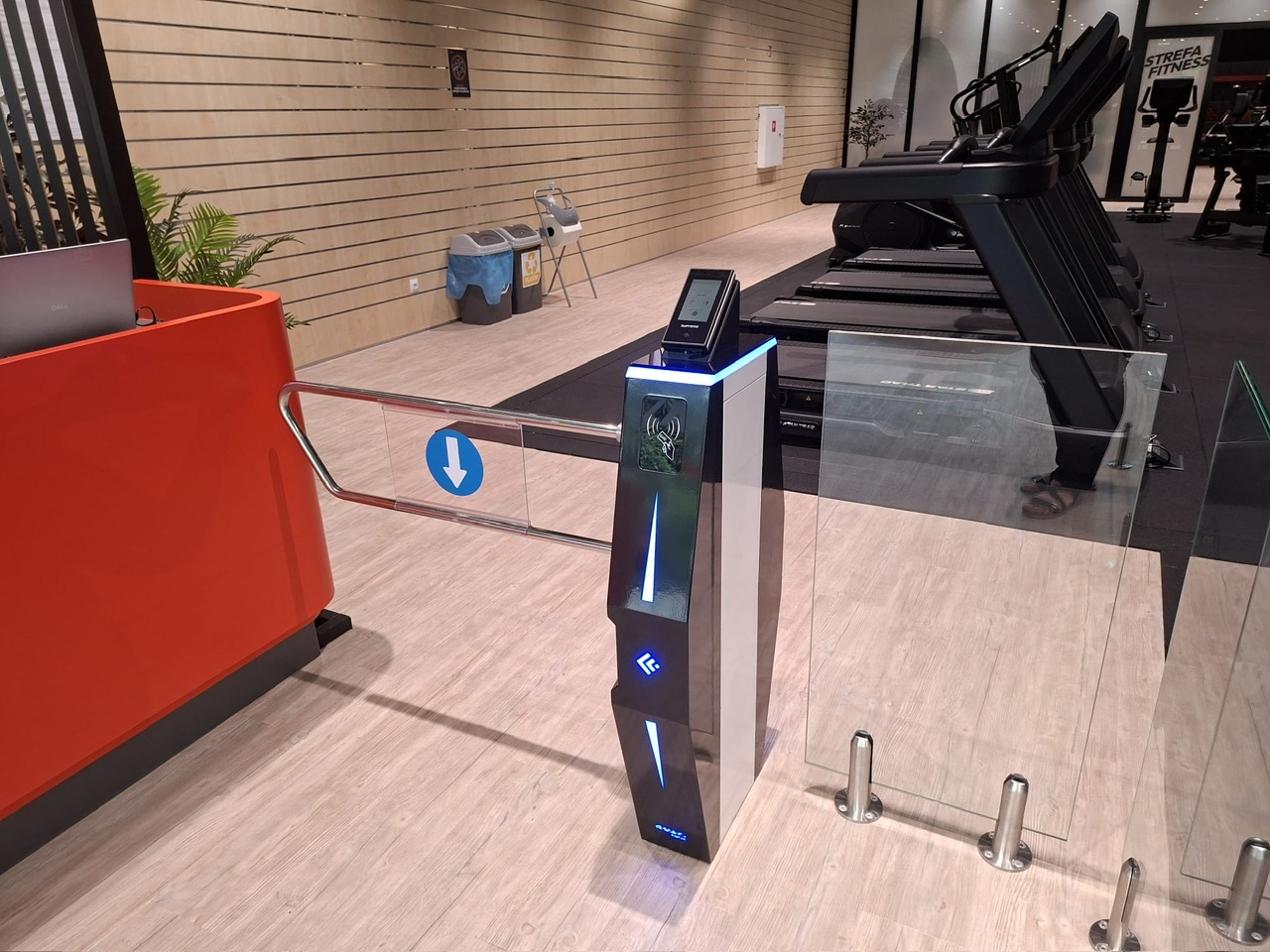

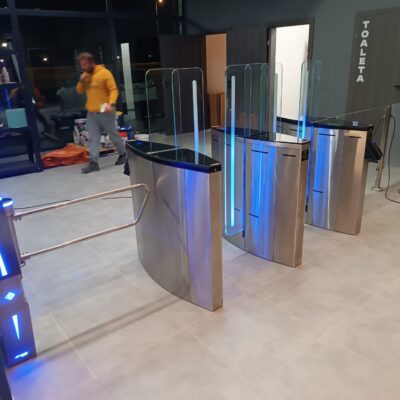

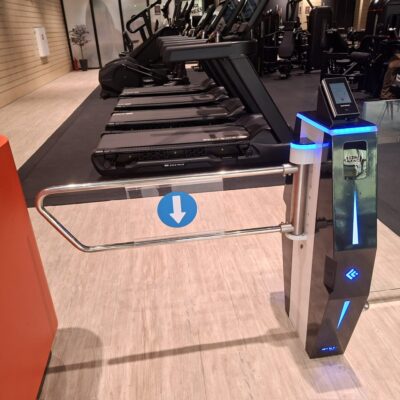

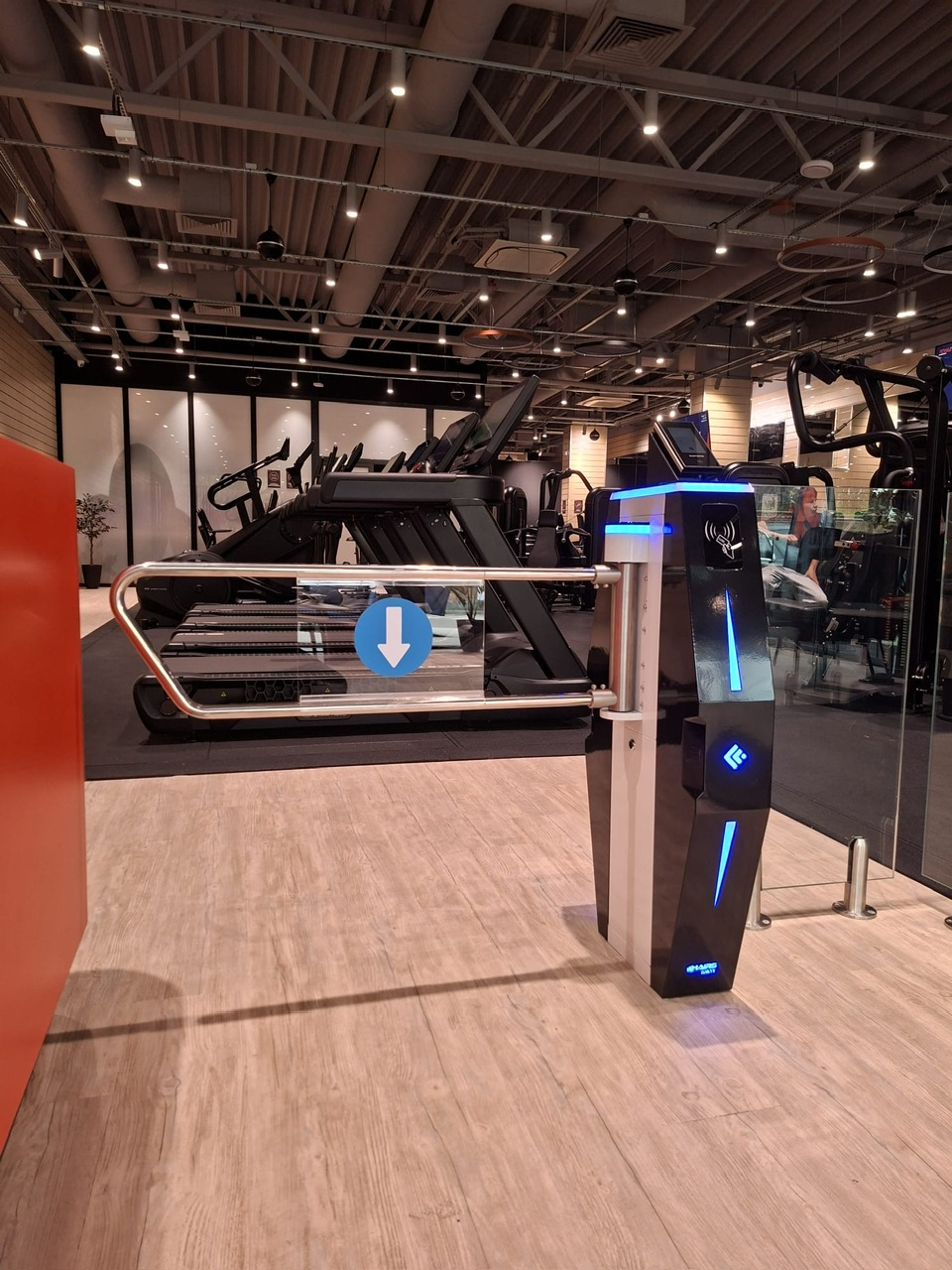

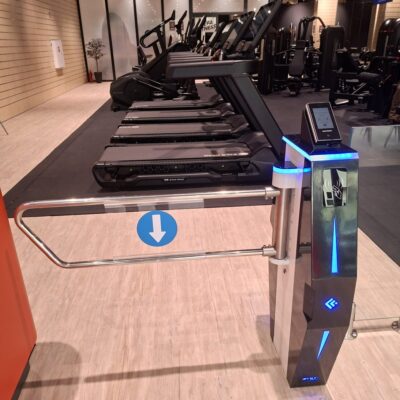

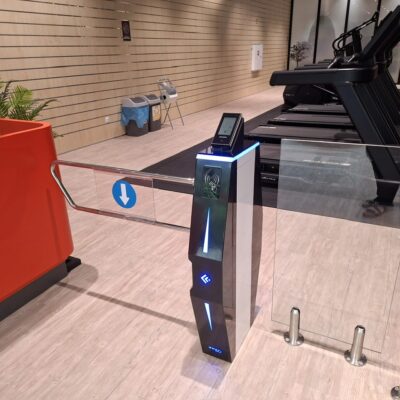

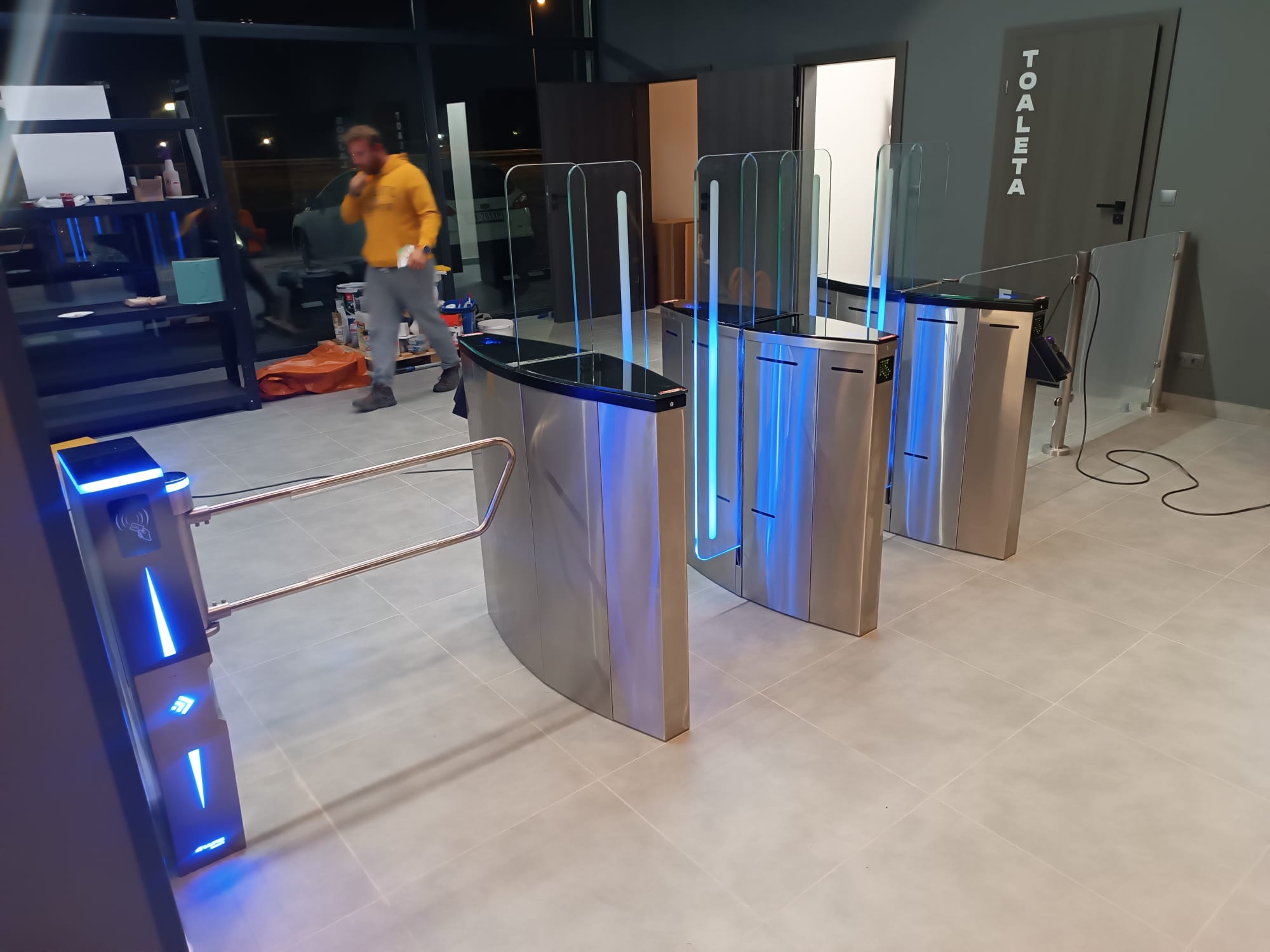

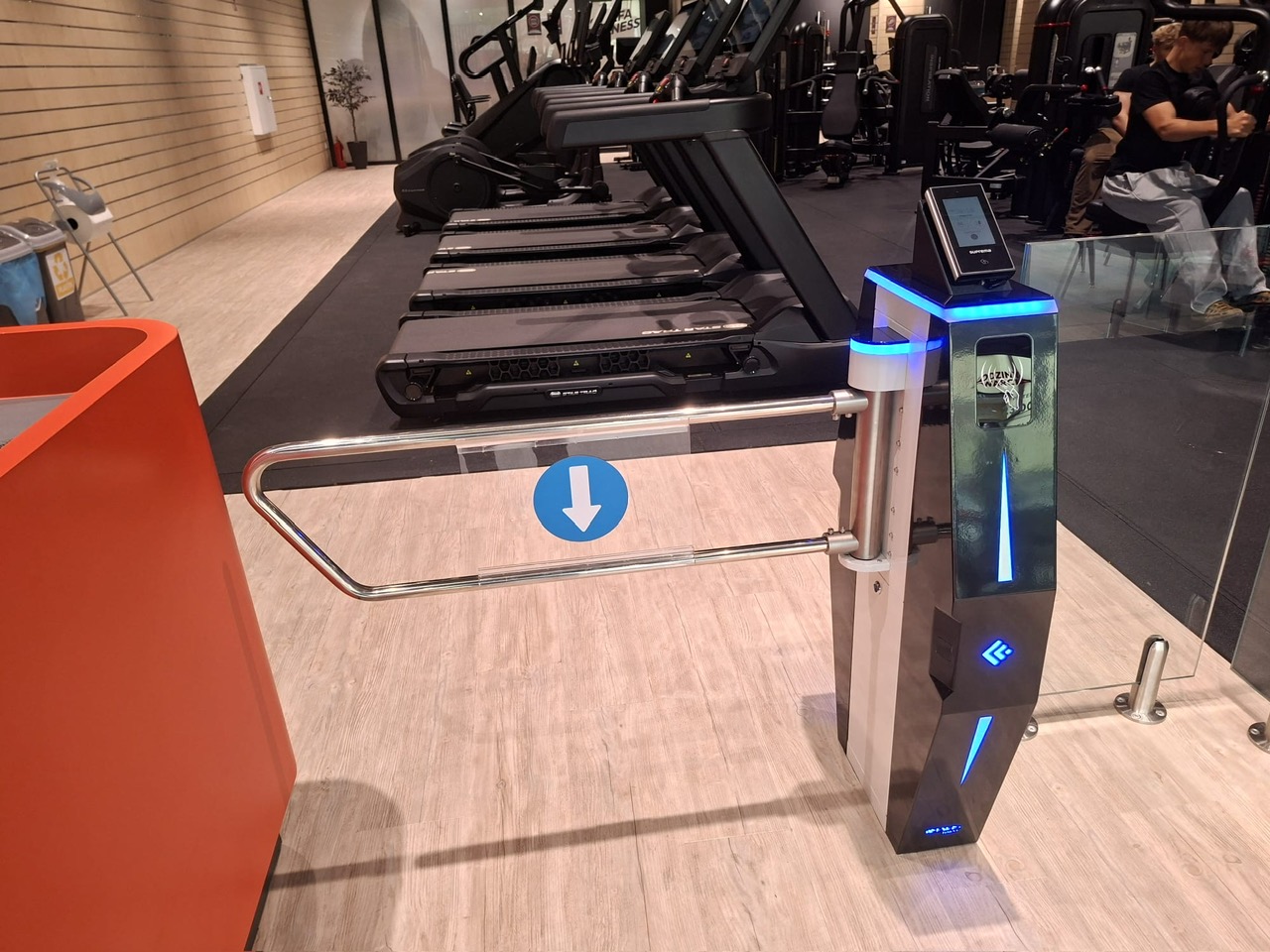

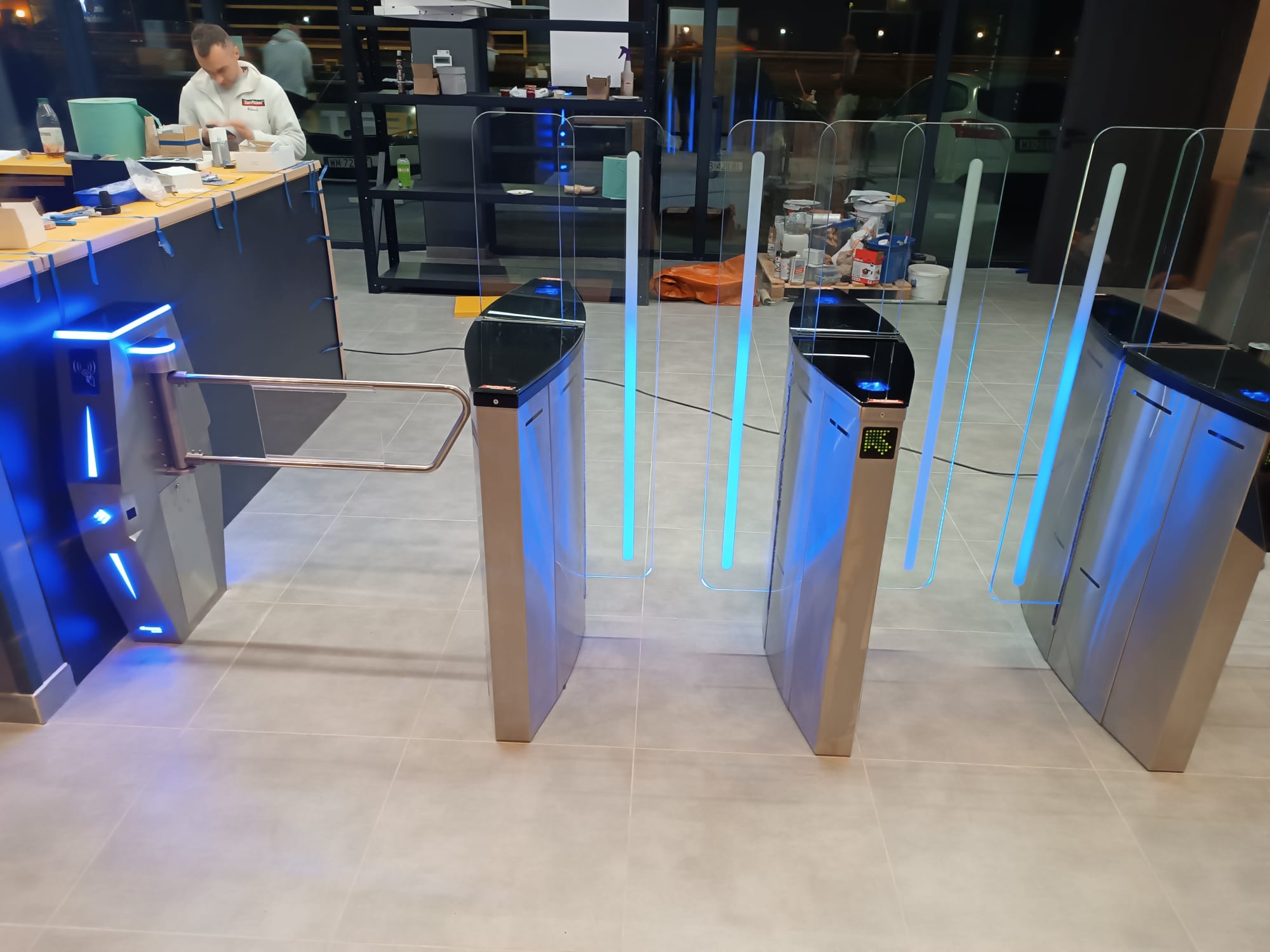

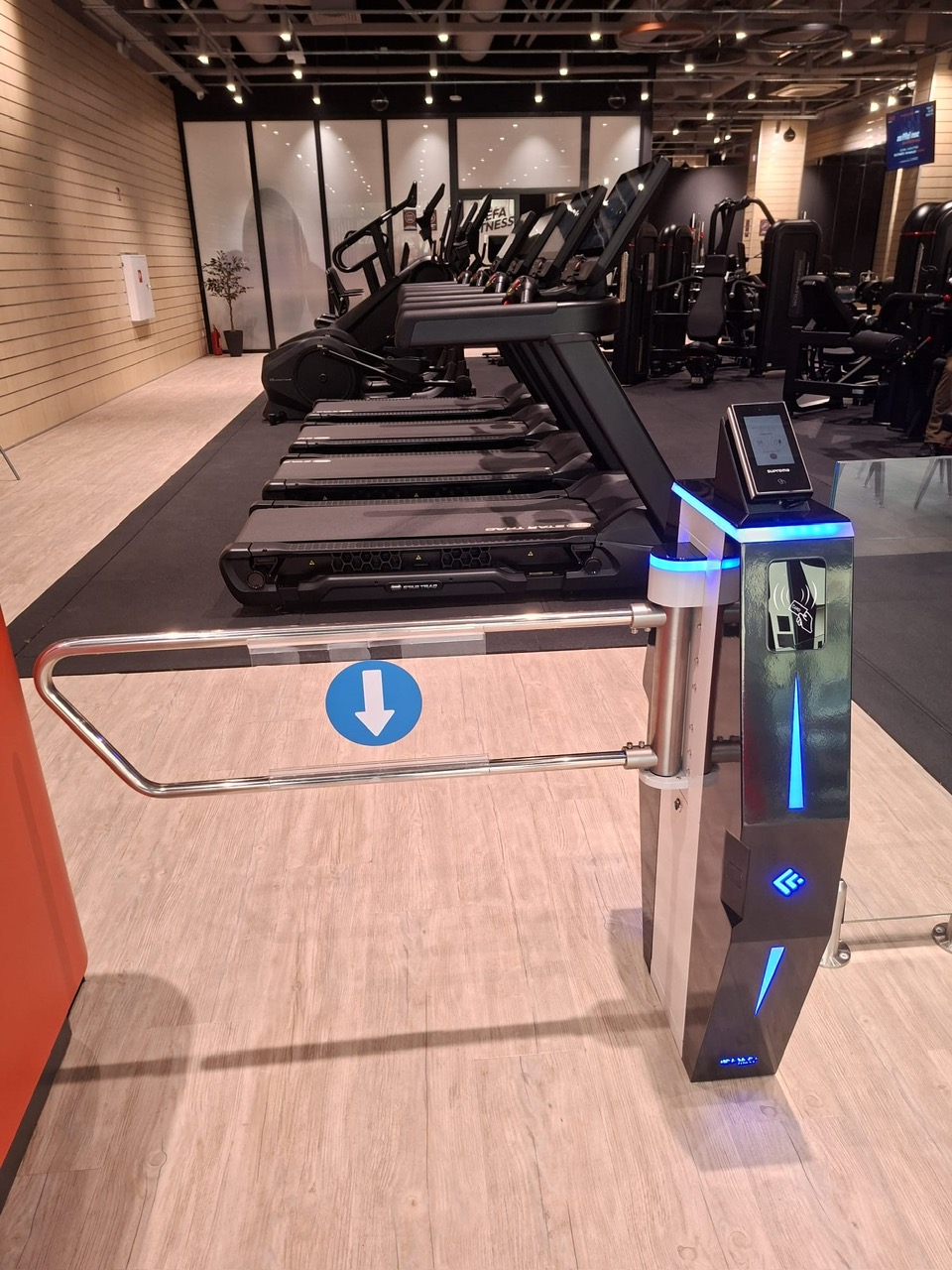

he m series vertical swing turnstile CP-LX311 has a relatively slender appearance, with a top cover made of acrylic and a combination of black paint and stainless steel
It can be in various colors to fit in different scenes. There are radar sensors cutout on both side of the gates.Customers can switch the location for the sensors per project requirement. It can also work with all third party access control.
CUSTOMIZATION

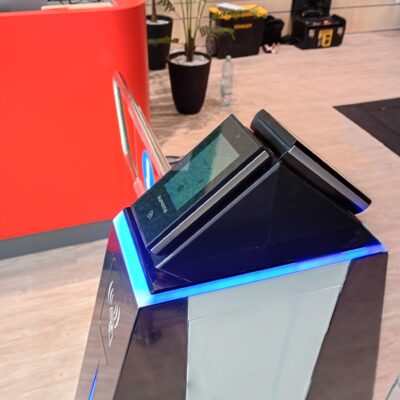

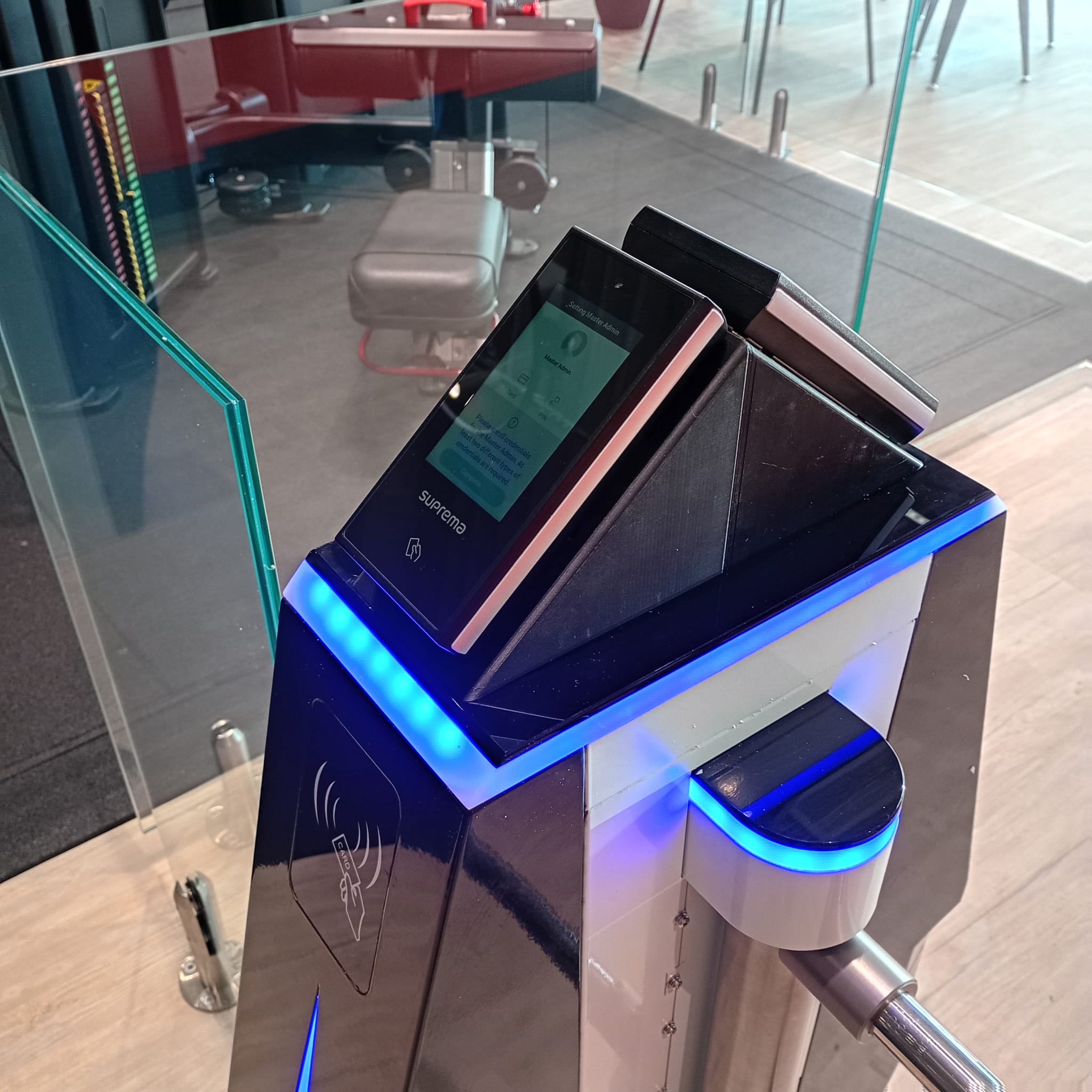

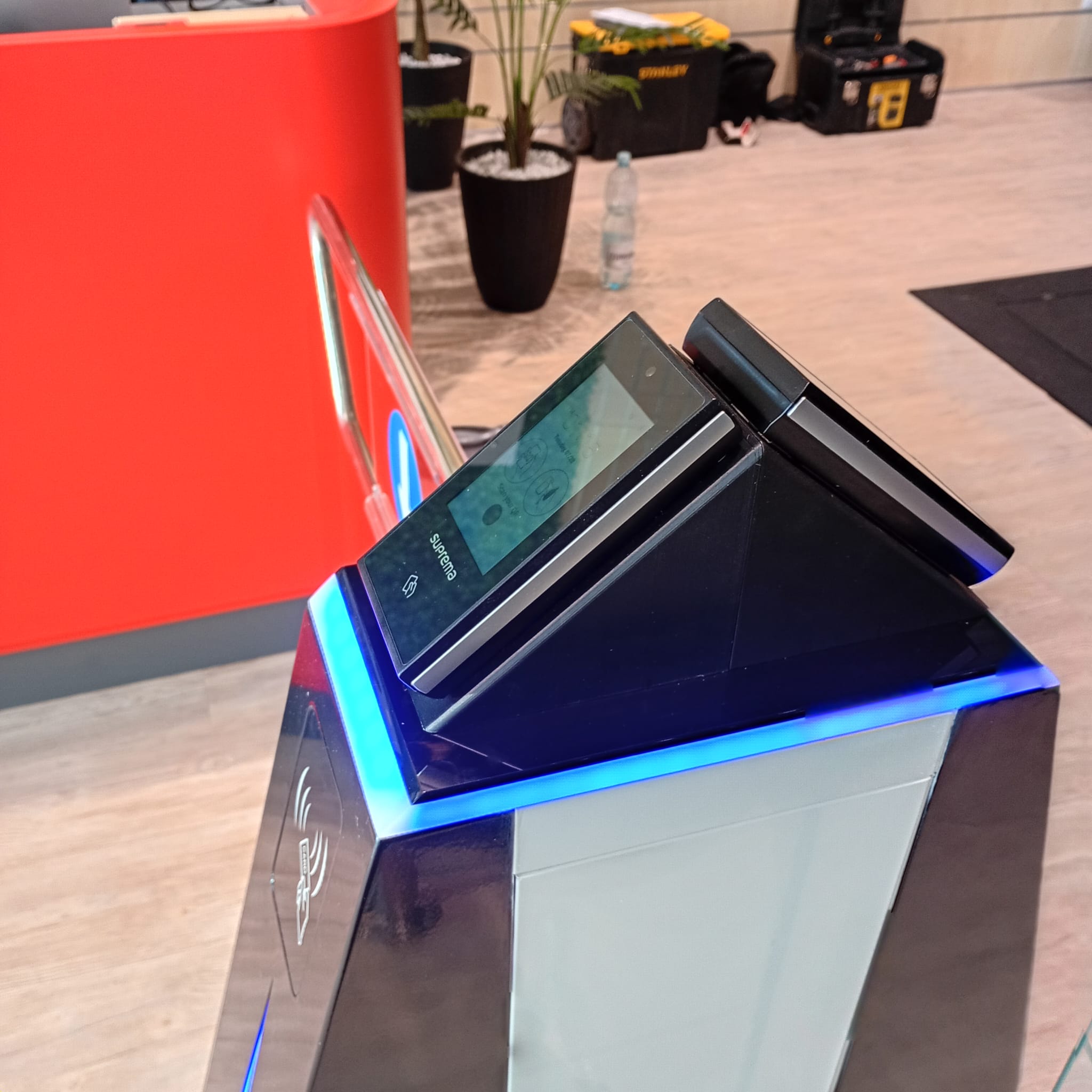

The cutout for readers can be customized
Provide us with the dimensions of the card reader/scanner or other access control reader and we will customize the cutout according to its dimension.

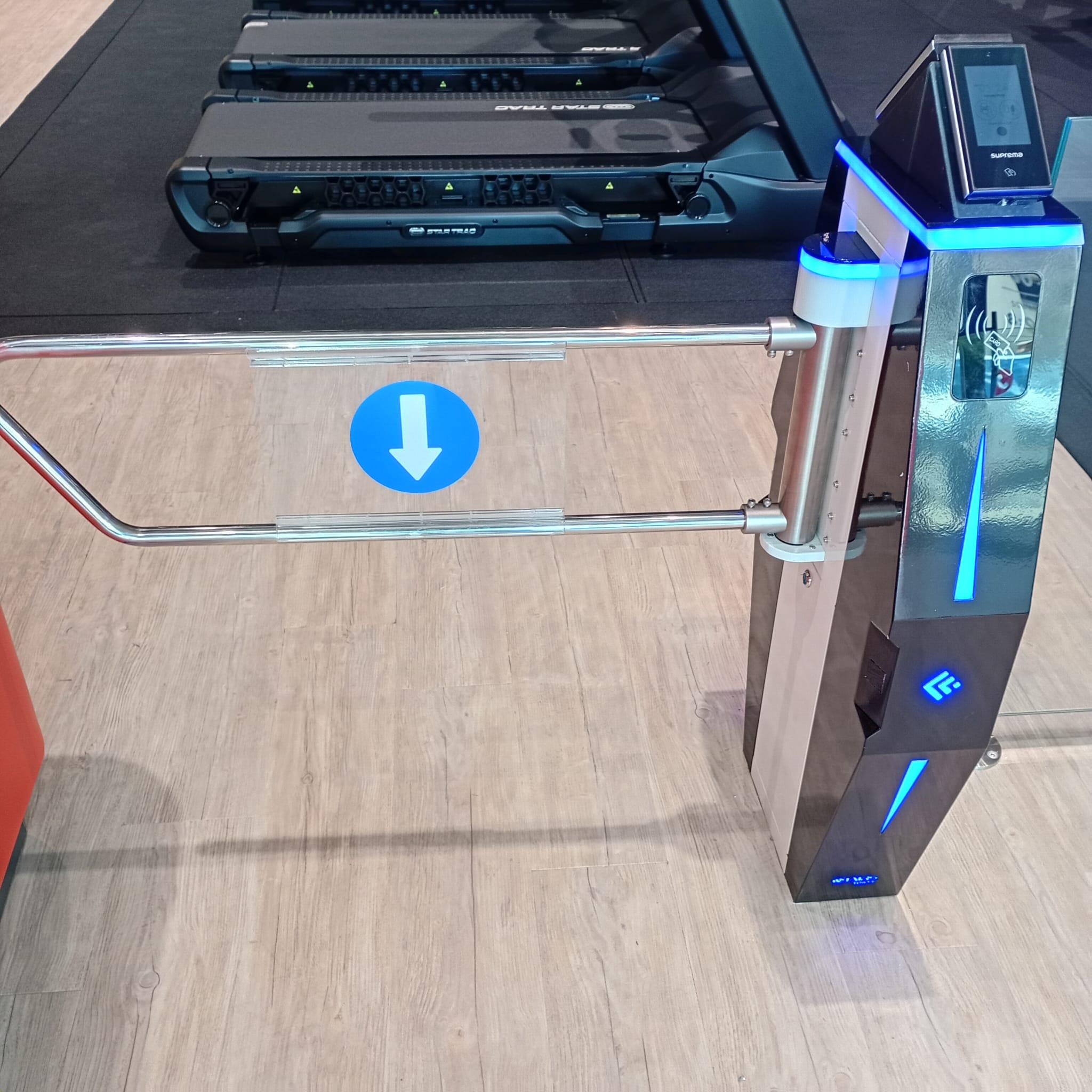

Swing arm can be customized

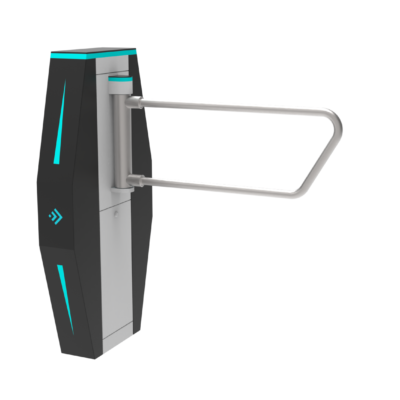

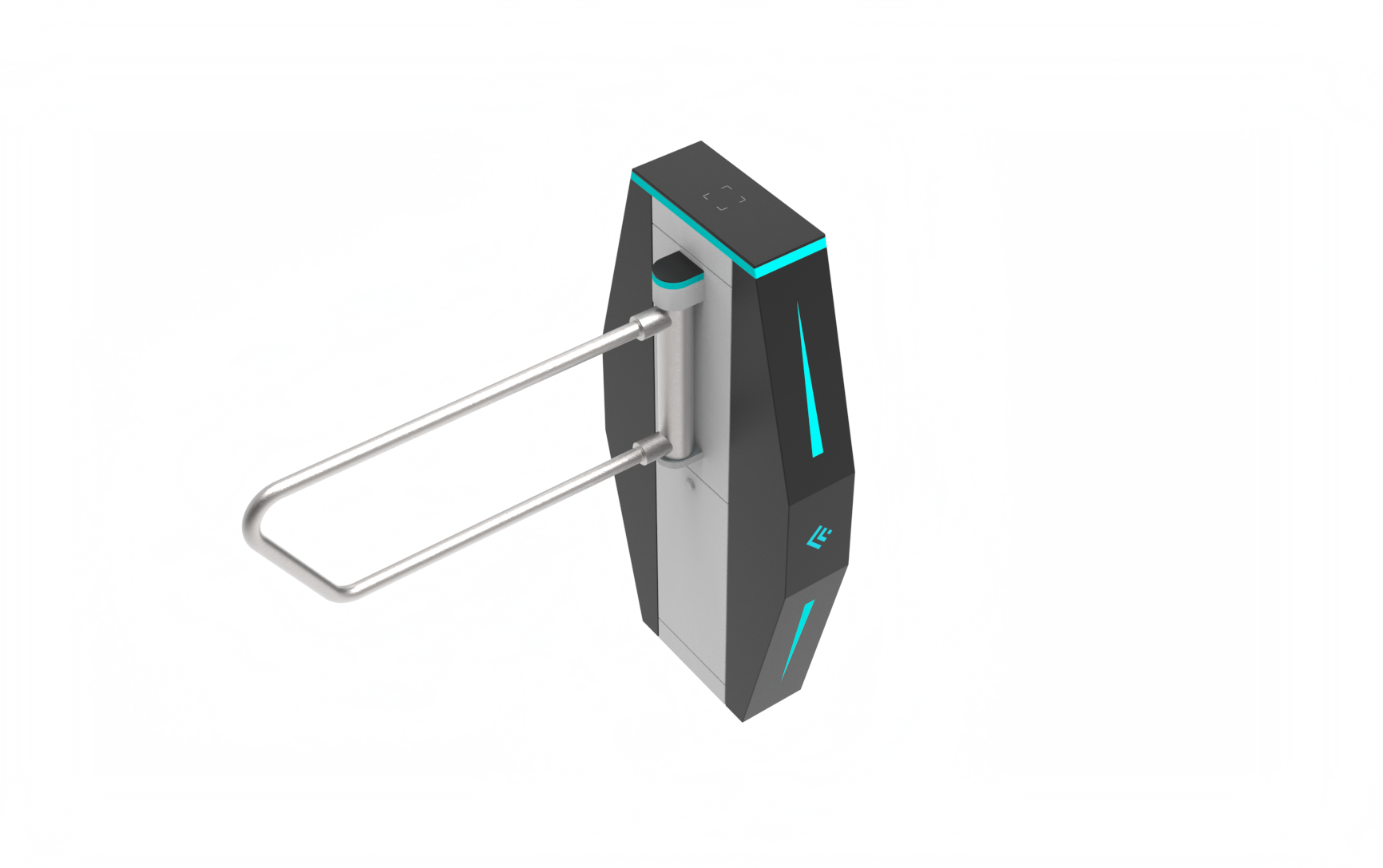

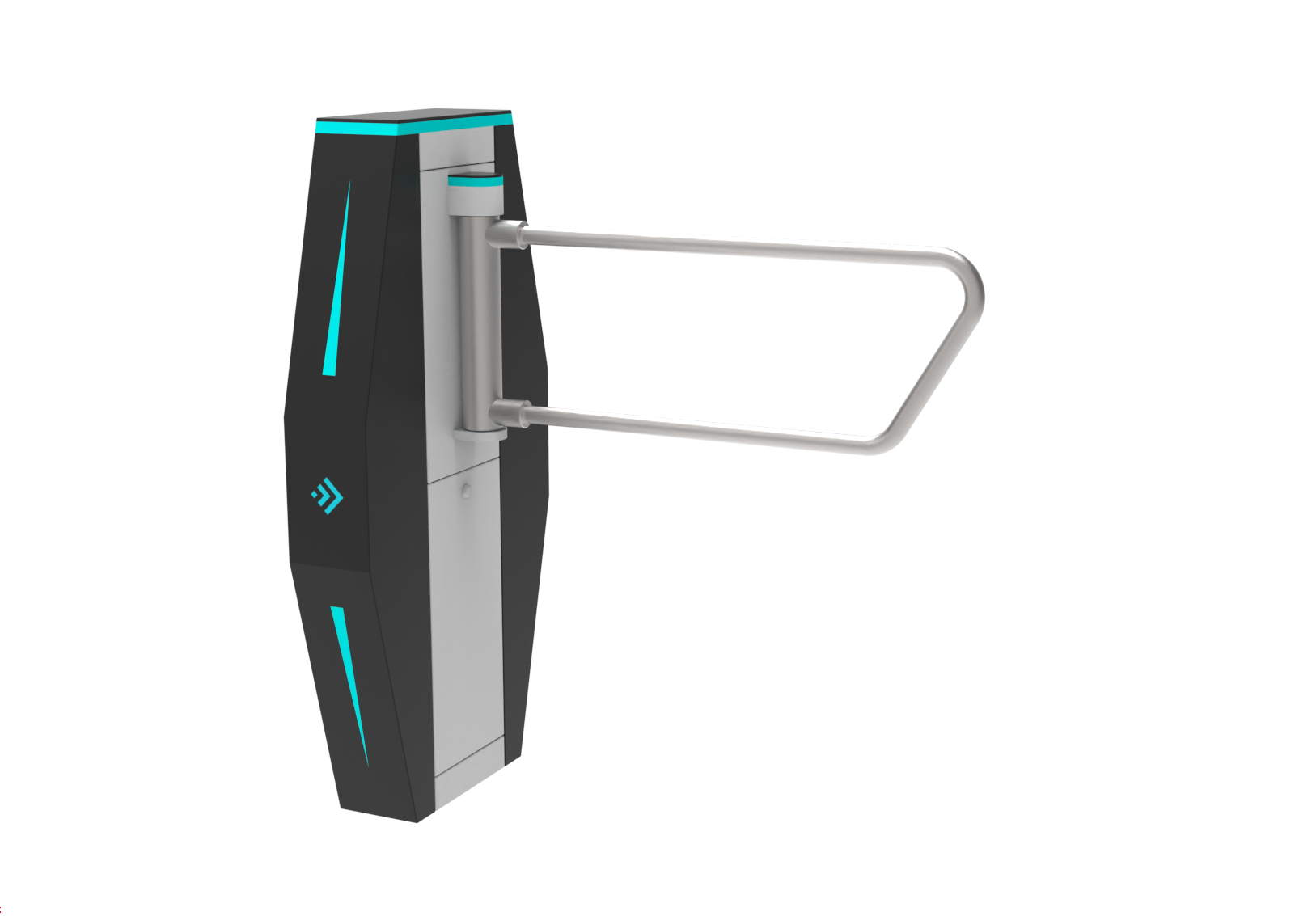

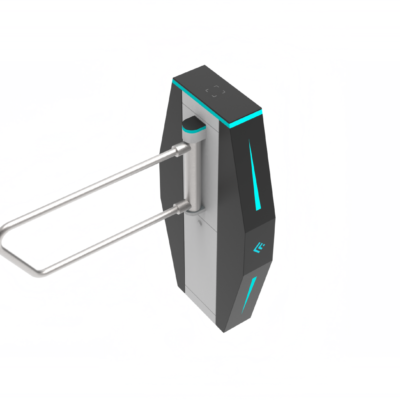

Swing arm material available in tube or acrylic or mesh.
Chassis color can be customized
Supports paint coated or galvanized. RGB, RAL or Pantone number required.
Other customizable Options
- Gate dimensions can be customized according to the site.
- Material optional: 304 stainless steel, 316 stainless steel, iron with powder coated and galvanized (color can be customized).
- Logo can be printed on swing arm, acrylic decoratiue bar, swipe card window. AI or CRD files required.
- Lights and infrared sensors can be added.
- LED colors can be customized.
- Swipe card icon can be cancelled.
- Customized 3D drawings are available based on the site photos.
- OEM&ODM service is available.
