Technical info
- Size: 2400*1500*2200 mm (can be customized)
- Lane width: 650 mm (can be customized)
- Passing speed: 30 person/min
- Power supply: 110V/220V 50/60Hz
- Weight: 435 kg

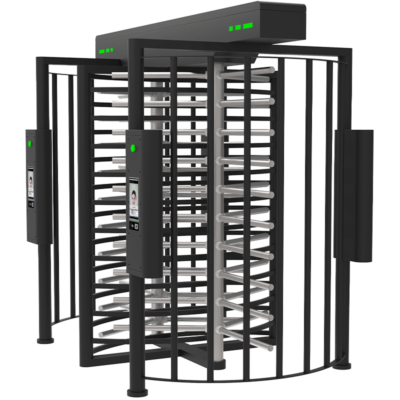

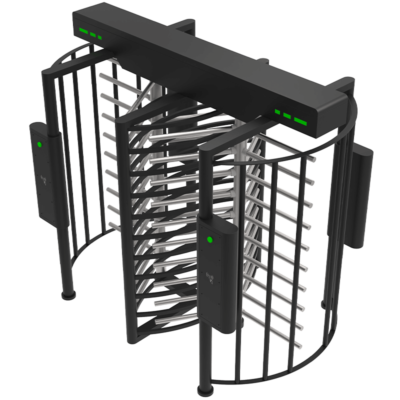

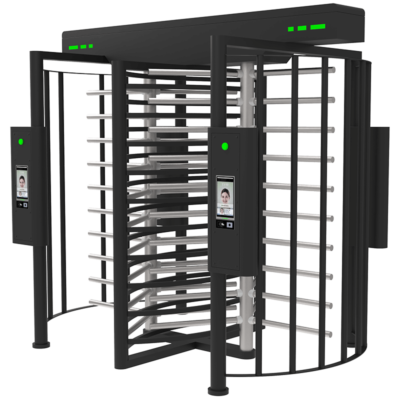

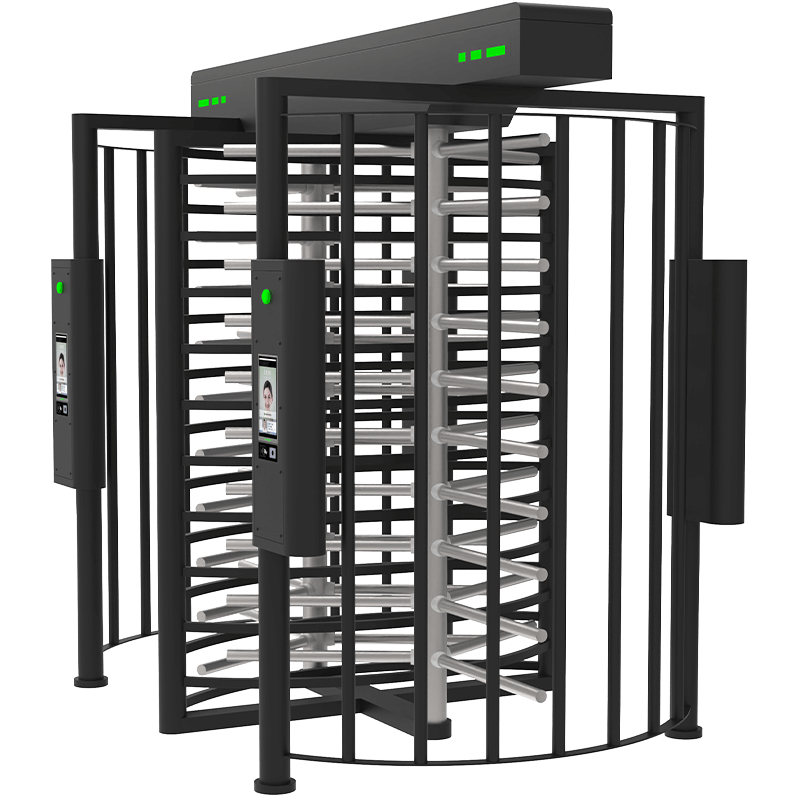

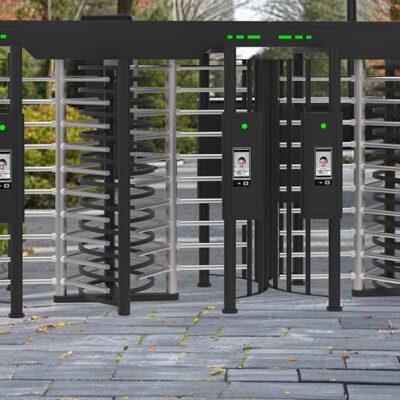

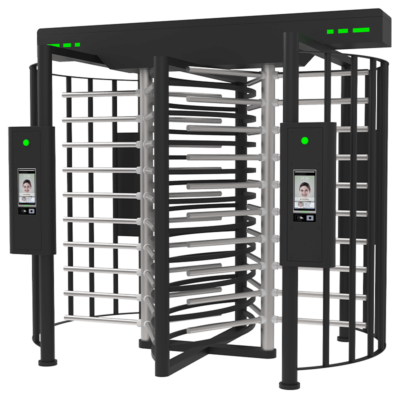

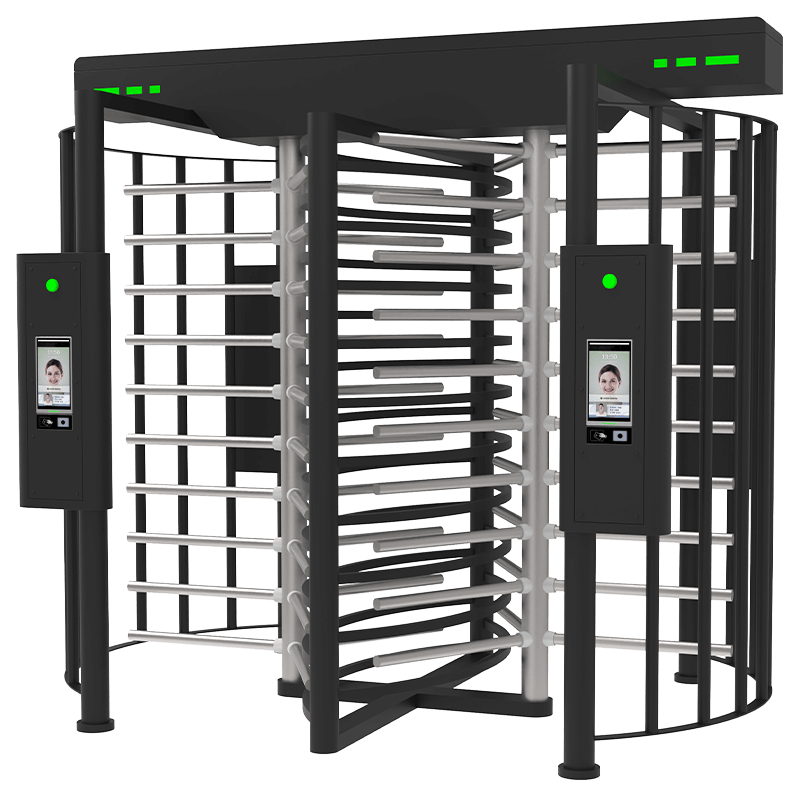

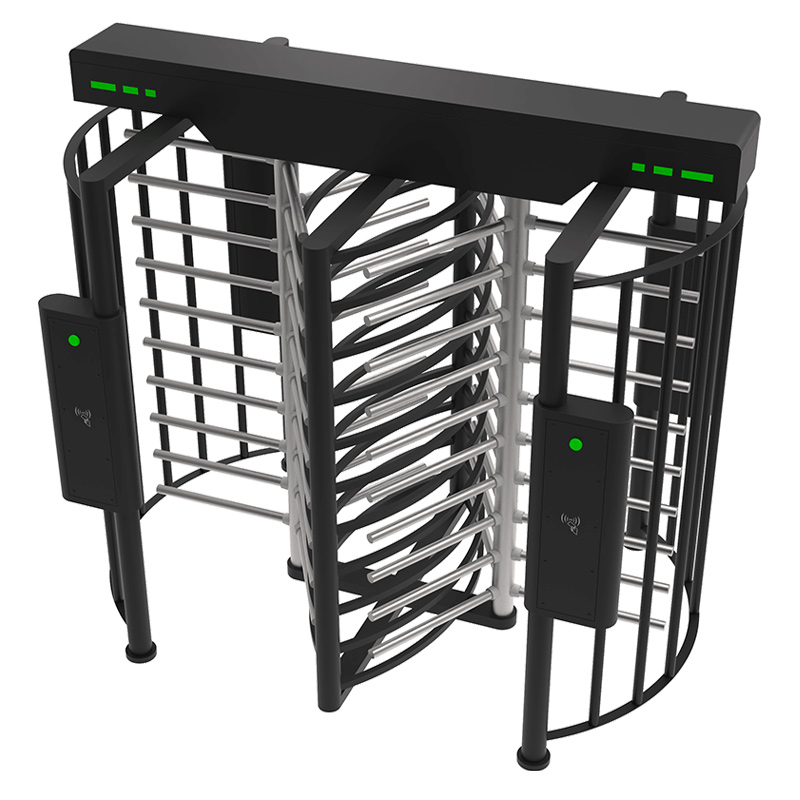

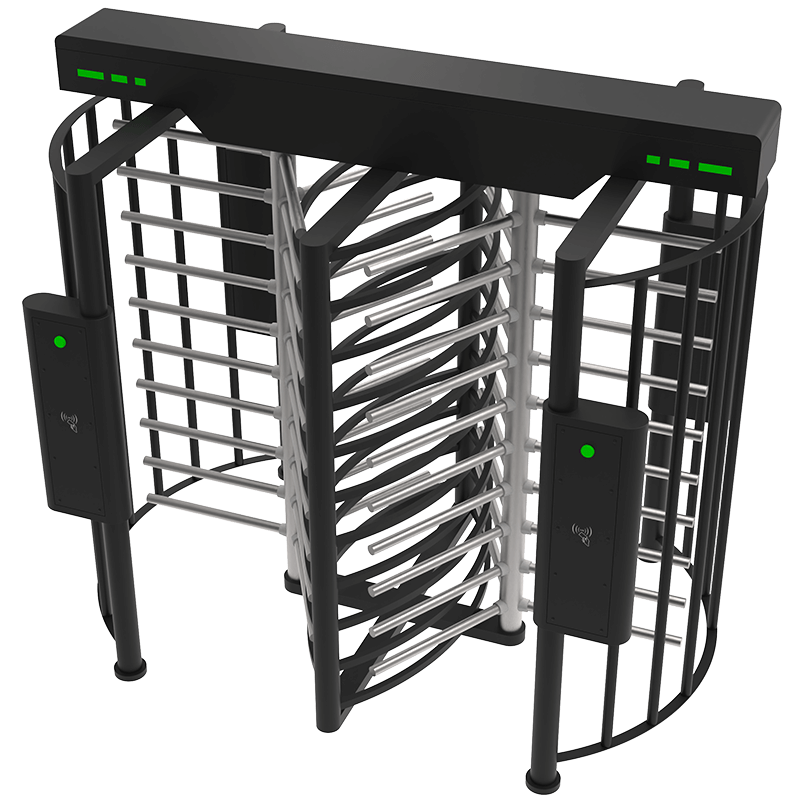

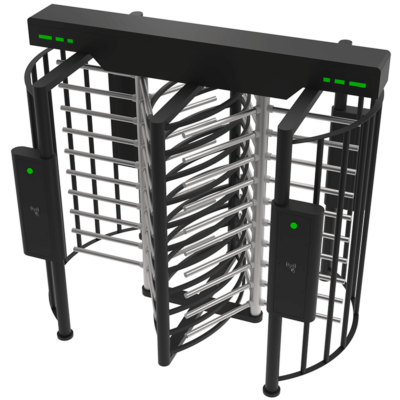

This is a classic full height double turnstile with a unique structural design for the top cover, and the guardrail adopts a fully enclosed structure, making the product stronger and safer
The classic combination of Sean Black paint and stainless steel is even more innovative. The unique shaped column box integrates with the overall product, with a large internal space that can easily install any large-sized third-party access control device.
Product Parameters:
- Open Signal: Dry Contact/ Relay
- Reliability of the mechanism: 3 million, no-fault
- Operation way: Semi-automatic
- Solenoid valve: DC24V ±5％
- Arm length: 640 mm
- Direction of rotation: Bidirectional/single direction
- Operational voltage: DC 24V ±5%
- Voltage of indicator light: DC12V ±5％(standard)
- Working temperature: -30℃～60℃
- Humidity: 5%～90%
- Waterproof: IP56
- Time needed for opening: 0.2 s
- Working environment: Indoor or outdoor

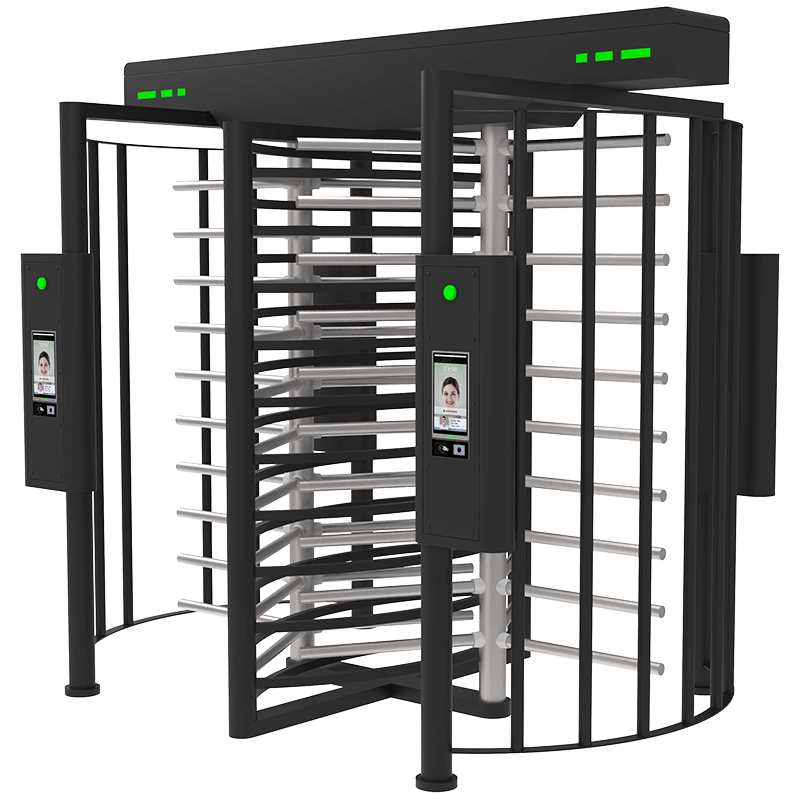

Access control & recognition solution
Support OEM and ODM. Support third-party biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. can easily integrate with third-party access control systems to achieve various functions. We can also integrate corresponding hardware facilities to achieve corresponding functions based on your project’s actual needs or software requirements.

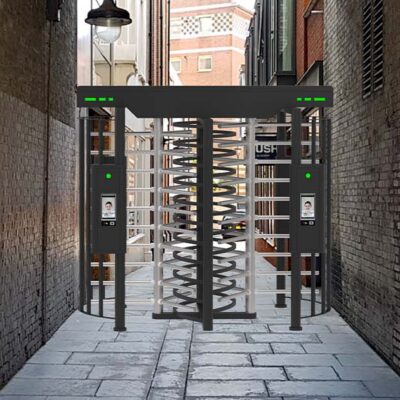

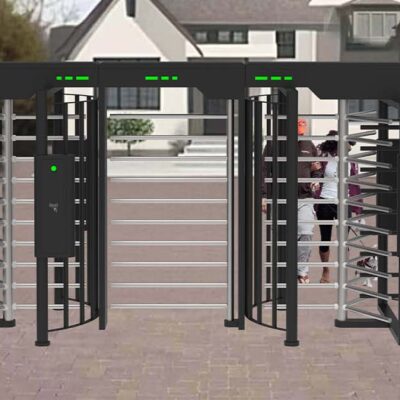

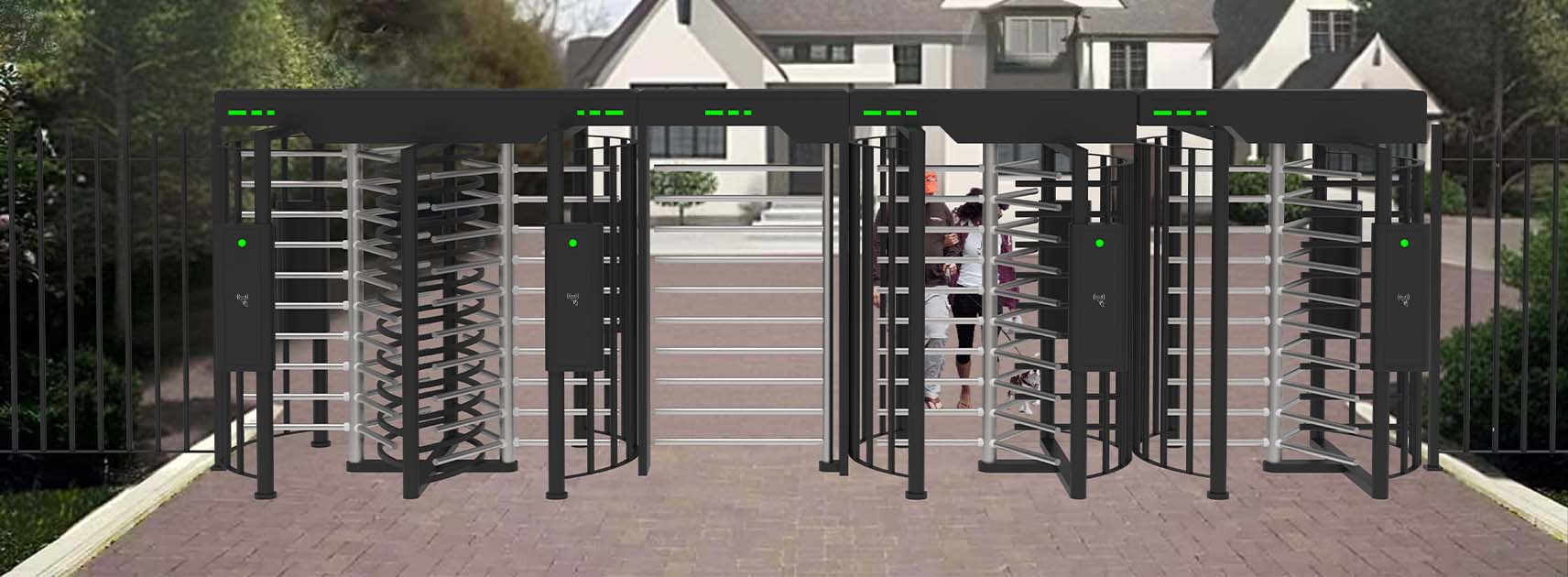

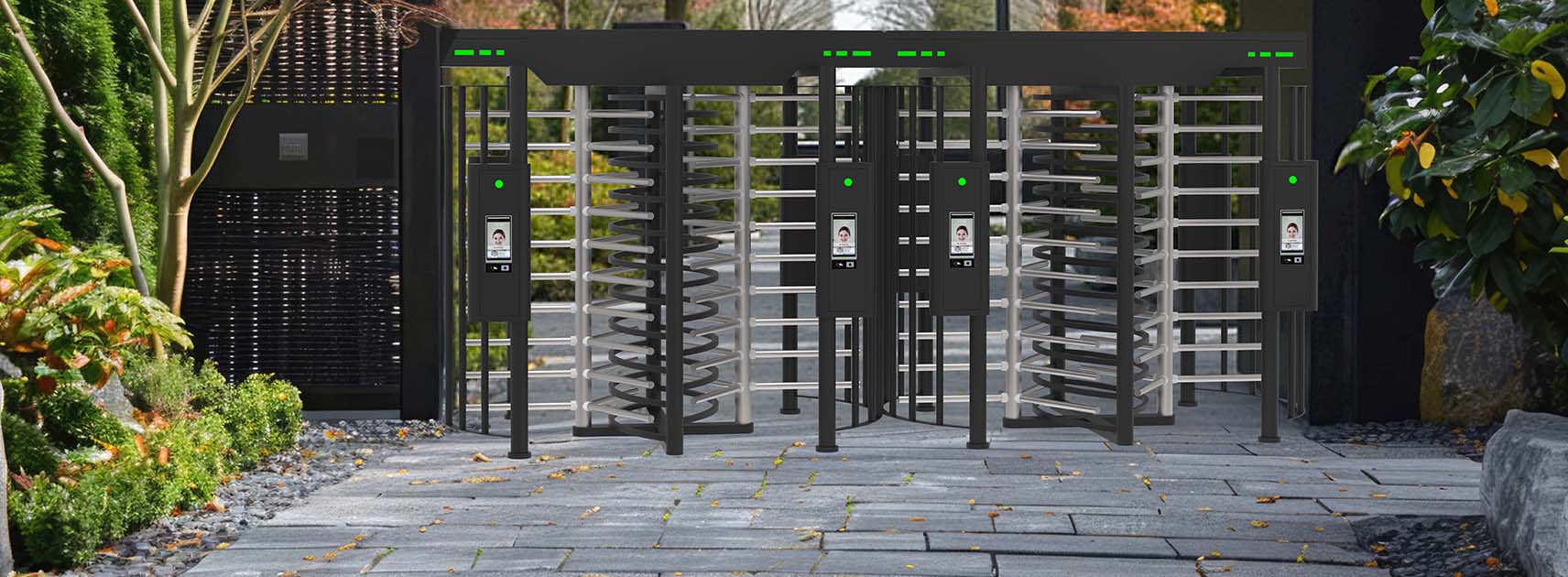

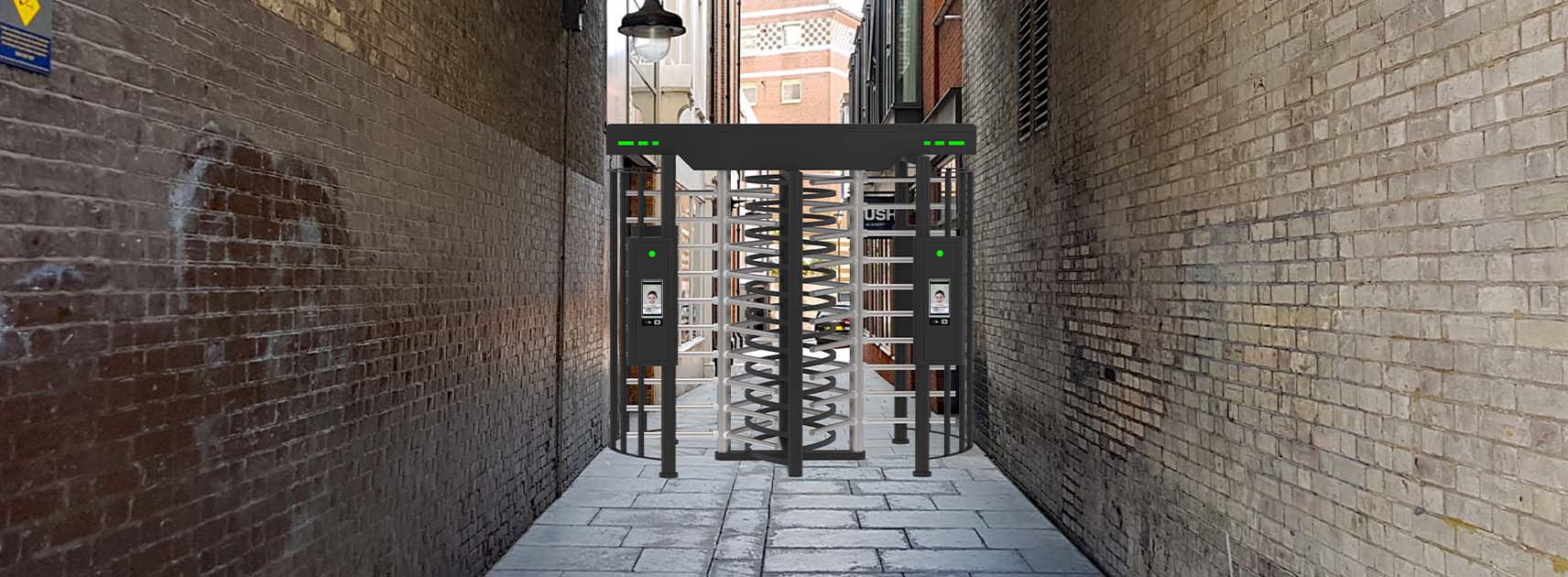

Diversified styles to adapt to various environments

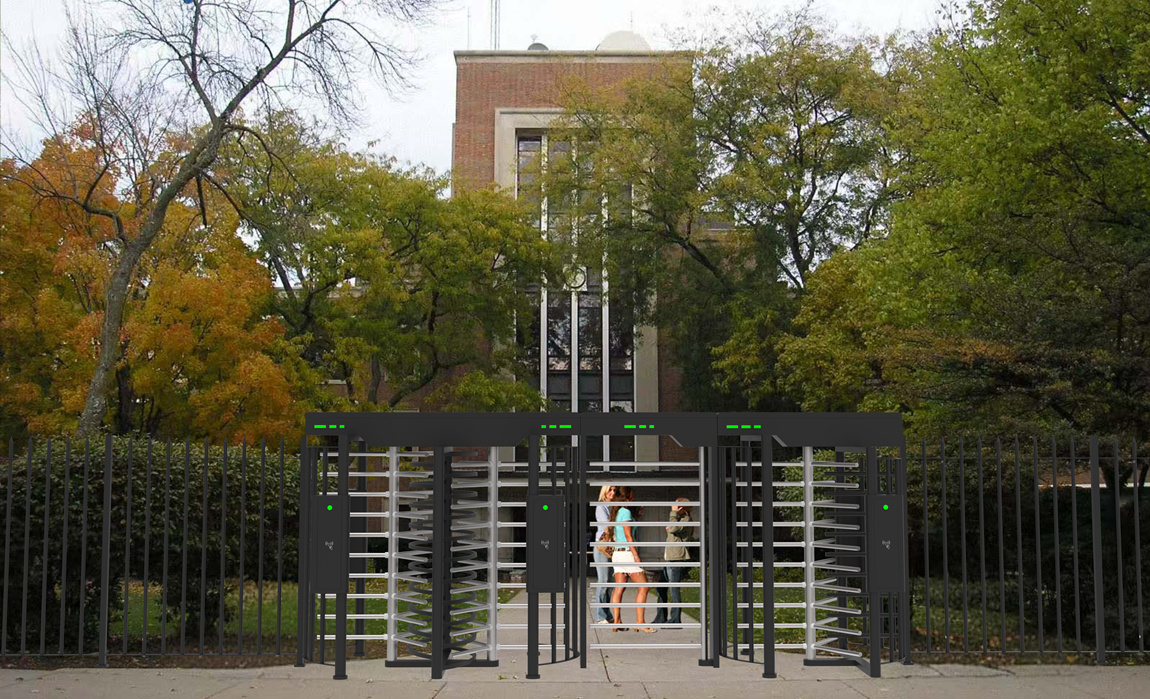

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Classic design, suitable for various high-end venues

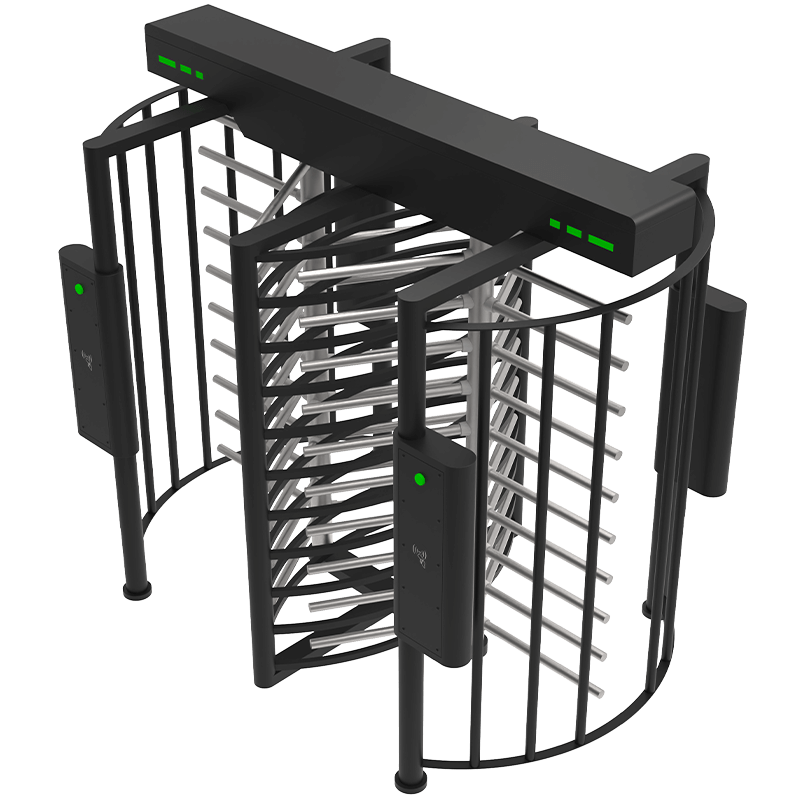

The classic combination of shawn black paint and stainless steel is fashionable and textured, and can blend seamlessly into most environments without any discomfort. The base has added fixing components, allowing the rotating rod and the upper door movement to be in concentric circles. Easy to install and disassemble.
