Technical info
- Display: 8 inch IPS screen
- Temp Sensor: Thermal imaging infrared temperature sensor
- Temperature: Range: 35~42℃
- Detect distance: 0.4m~0.7m
- Lens: focal length 1.8mm， Field of View：118°
- Dynamic Range: ≥100dB
- S/N Ratio: ≥43dB（AGC OFF）
- White balance: Auto, indoor, outdoor, sodium lamp mode, manual
- Digital noise reduction: Support DNR,3DNR
- Day and night mode: FIxed Color
- Number of face bases: 20,000 sheets
- Recognition speed: ≤300ms
- Live detection: support
- Mask detection: support
- Body temperature: support
- Operation system: Android 7.1 RK3288

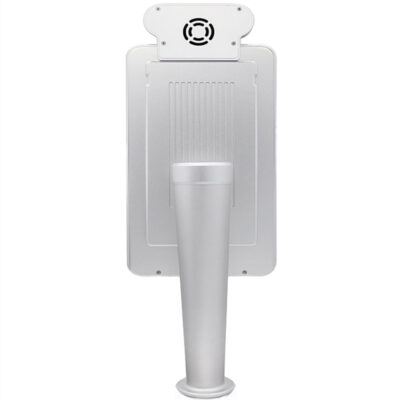

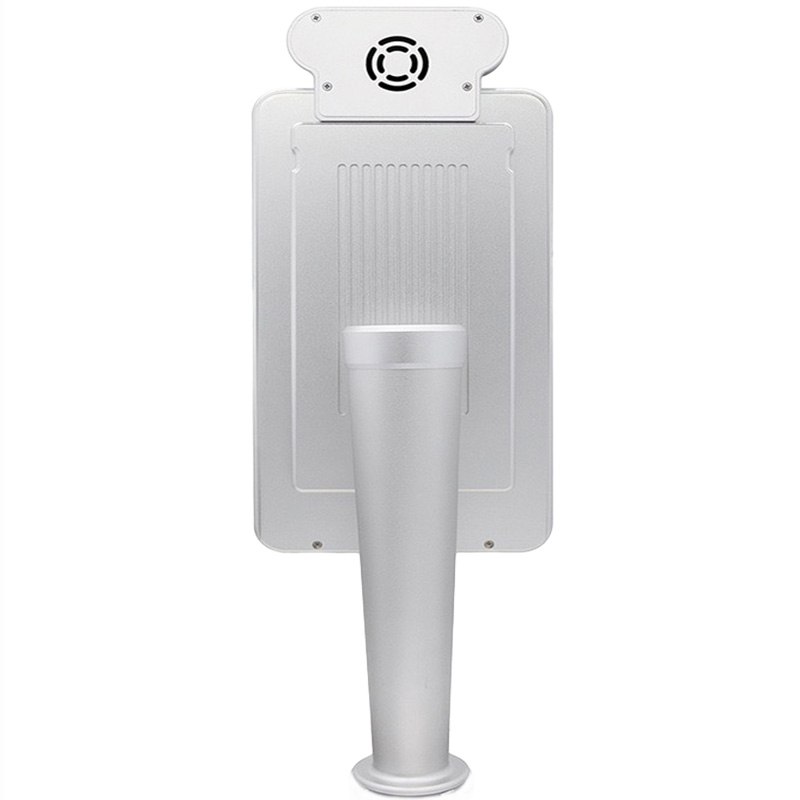

8” Face Recognition Temperature Measurement
This 8” Face Recognition Temperature Measurement Terminal MT-F808 is a high-performance embedded binocular temperature-measuring face recognition terminal. The terminal integrates the functions of off-line face recognition, temperature detection, mask recognition, identity verification, on-site face collection, blacklist early warning, photo taken after passing, and active object detection.
It adopts WDR HD face recognition camera, which is fully adapted to harsh environments such as strong light, backlight, and weak light, with characteristics of fast recognition speed, high accuracy, and large list storage capacity. Mairs offers the best face recognition temperature measurement terminal for turnstile gates.
These face recognition cameras can be well integrated into our security turnstiles, which is a perfect combination. If you have special requirements for these cameras, we can also customize special functions according to your special needs. Of course, if you need more detailed information or our product manual, or want to customize a face recognition camera to meet your needs, please contact us directly.
Product Characters:
- Built-in non-contact high-precision thermal imaging module + live detection in one
- Temperature detection range 35℃~42℃， Precision±0.3℃
- Support human body temperature overlay、picture overlay
- Support body temperature detection
- Supports mask detection
- Built-in FACE ++ deep learning face recognition algorithm， Stable and reliable
- Support 50,000 face database
- 300 ms fast identification
- 8inch HD LCD display
- Local alarm output after abnormal temperature
- Face recognition, temperature detection, and mask recognition, Freely configure multiple usage modes
- Ultra-thin metal shell. face recognition temperature measurement.
- Can record identification information and temperature information, save traceability
- Excellent environmental adaptability, adapt to low light and strong backlight, support automatic face exposure
- Support Wigan protocol, can directly drive access control and control various gates
- Rich hardware interface, integrated 100M Ethernet interface, audio interface, Wiegand interface, relay interface, TF card, USB, and other interfaces
- Support 2D, and 3D digital noise reduction
- Low power consumption, mainboard power consumption is as low as 5 watts
- Support the secondary development of device-side application software
- Support various software and hardware customize
